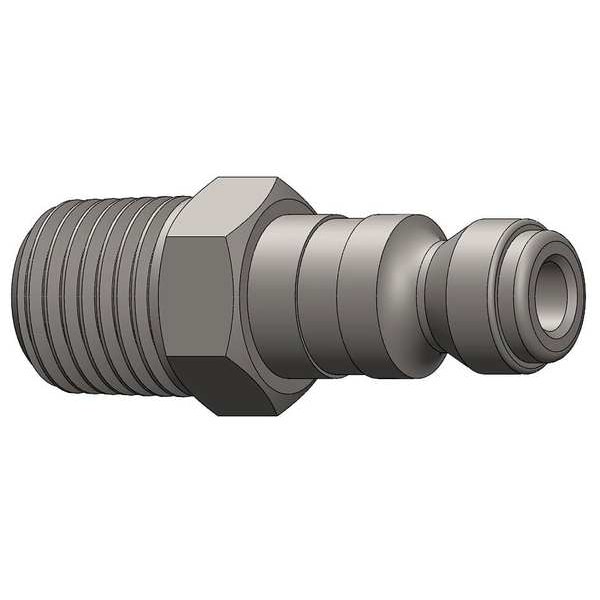

Male to Automotive Plug, (M)NPT, 1/4, Steel
Mfr # J2M2
Zoro # G1363546
Key Features
Specifications
Details
- MFR #
- J2M2
- Zoro #
- G1363546
- UPC #
- -
- Country of Origin
- United States
- Item
- Quick Connect Air Coupling
- Interchange Type
- Tru-Flate-Automotive
- Material
- Steel
- Coupling Component
- Plug
- Hose Fitting Gender
- Male
- Connection Type
- Threaded
- Finish/Coating
- Zinc-Plated
- Max. Flow Rate
- 736.23 lpm
- Coupling Locking Type
- Sleeve
- Seal Material
- Nitrile
- Includes Valve
- No
- Color
- Silver
- Temp. Range
- -40 Degrees to 250 Degrees F
- Application
- On End of Hose or Pipe
- Max. Working Pressure @ 70 F
- 500 psi
- Barbed
- No
- For Use With
- Automotive Style
- For Hose I.D.
- 1/4 in
- Connection Thread Type
- NPT
Description
The DIXON - J2M2 is a quick connect hose coupling that enables connection and disconnection using the specified sleeve locking mechanism. It provides a seal using nitrile seals for compatible pneumatic/hydraulic/general fluid transfer applications (leak prevention not guaranteed). This coupling is compatible with fittings that meet the Tru-Flate-Automotive interchange standard and the listed thread/size specifications. Manufactured to meet the Tru-Flate-Automotive interchange standard for use with components that are compatible with that standard, it facilitates interoperability with those related components. Constructed from zinc-plated steel with nitrile seals, the fitting is rated for operation within -40°F to 250°F and has a maximum rated working pressure of 500 psi.
Key Features:
- Coupling component: Plug with male hose fitting gender
- Connection type: 1/4" -18 NPT thread
- Coupling and hose fitting size: 1/4 in
- Hose inner diameter compatibility: 1/4 in
- Coupling locking type: Sleeve mechanism
- Maximum flow rate: 736.23 liters per minute (under specified system conditions)
- Maximum outside diameter: 11/16 in
- Overall length: 1.63 in (1 5/8 in)
- Seal material: Nitrile
- Material: Zinc-plated steel
