  11. Indexable Boring Bar, S24U-MTFNR-4, 14 in L, High Speed Steel, Triangle Insert Shape

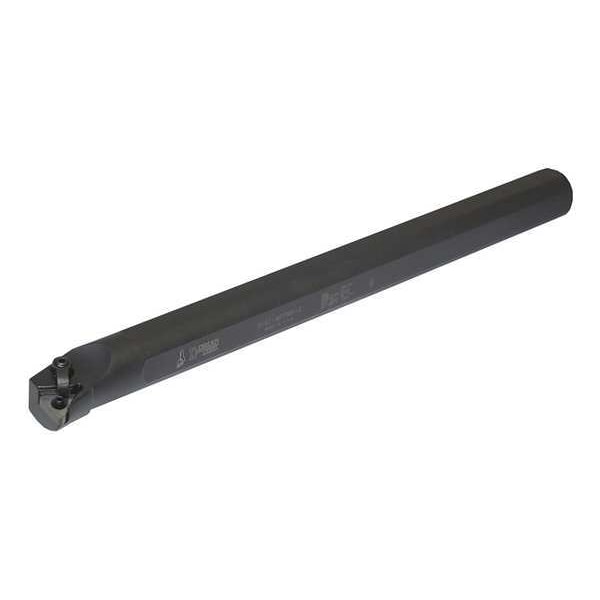

Dorian Indexable Boring Bar, S24U-MTFNR-4, 14 in L, High Speed Steel, Triangle Insert Shape 55174 - main

Indexable Boring Bar, S24U-MTFNR-4, 14 in L, High Speed Steel, Triangle Insert Shape

  • Mfr # 55174

  • Zoro # G9247427

product price: $333.99
/ea
Free Shipping & Returns

Key Features

Overall Length
14 in
Shank Material
High Speed Steel
Insert Shape
Triangle
ANSI Code
S24U-MTFNR-4
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
55174
Zoro #
G9247427
UPC #
733101551743
Country of Origin
United States

Dimensions

Overall Length
14 in
Insert Thickness
0.1875"
Insert Size
432
Width Offset
0.89"
Shank Dia.
1-1/2 in
Min. Bore Dia.
2.0600 in

Details

Item
Indexable Boring Bar
Shank Material
High Speed Steel
Insert Shape
Triangle
ANSI Code
S24U-MTFNR-4
Cutting Direction
Right Hand
Insert Screw
NL-46
Type
Standard Steel
Shim Screw
NL-46
Style
Negative
Inscribed Circle
1/2"
Lead Angle
0 Degrees
Clamp
CL-9
Material
Steel
Min. Bore
2.06"
Shank
Round
Shim
ITSN-433
Mounting Style
Multi-Lock
Clamp Screw
XNS-59
Rake
Negative
Side Cutting Edge Angle
0 Degrees
ISO Number
S24U-MTFNR-4
Head Material
Steel
Insert Style
TNM
Insert Holding Type
Clamp and Lock Pin
Insert Inscribed Circle
1/2 in
Number of Inserts
1
Insert Clearance Angle
0 Degrees
Compatible Hardware
CL-9 Clamp, ITSN-433 Seat, NL-46 Lock Pin, S-46 Optional Seat Screw, XNS-59 Clamp Screw
Center to Cutting Tip
57/64 in
Cutting Application
Boring

Description

Indexable Boring Bar, Insert Shape Triangle, Overall Length 14 in, S24U-MTFNR-4, 57/64 in, CL-9 Clamp, ITSN-433 Seat, NL-46 Lock Pin, S-46 Optional Seat Screw, XNS-59 Clamp Screw, Boring, Right Hand
