  11. Indexable Boring Bar, TPBN12-3, 10 in L, High Speed Steel, Triangle Insert Shape

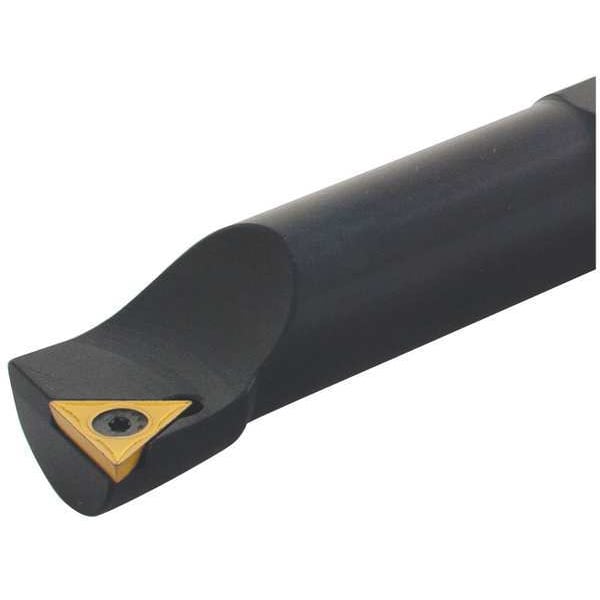

Dorian Indexable Boring Bar, TPBN12-3, 10 in L, High Speed Steel, Triangle Insert Shape 73310155664 - main

Indexable Boring Bar, TPBN12-3, 10 in L, High Speed Steel, Triangle Insert Shape

  • Mfr # 73310155664

  • Zoro # G8146013

product price: $103.99
/ea
Free Shipping & Returns

Key Features

Overall Length
10 in
Shank Material
High Speed Steel
Insert Shape
Triangle
ANSI Code
TPBN12-3
Min. Bore
0.845"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
73310155664
Zoro #
G8146013
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
10 in
Width Offset
0.422"
Insert Size
322
Insert Thickness
0.1562"
Shank Dia.
3/4 in
Shank Length
7-1/2 in
Min. Bore Dia.
0.8450 in
Max. Bore Depth
2-1/2 in

Details

Item
Indexable Boring Bar
Shank Material
High Speed Steel
Insert Shape
Triangle
ANSI Code
TPBN12-3
Min. Bore
0.845"
Mounting Style
Screw Lock
Material
Steel
Inscribed Circle
0.375"
Insert Screw
TS-44-3M1
Cutting Direction
Right Hand
Shank
Round
Lead Angle
0 Degrees
Style
TPBN12-3
Type
Standard Steel
Rake
Negative
Insert Holding Type
Screw On
Head Material
Steel
Center to Cutting Tip
0.4220 in
Compatible Hardware
T-10 Torx Key, TS-44-3M Insert Torx Screw
Number of Inserts
1
ISO Number
TPBN12-3
Insert Inscribed Circle
3/8 in
Side Cutting Edge Angle
-5 Degrees
Insert Style
TPGH
Features
Clearance Angle of Insert in Relation to Cutting Edge Gives Micro Finish, Fast Material Removal
Cutting Application
Roughing to Finishing

Description

Indexable Boring Bar, Insert Shape Triangle, Overall Length 10 in, TPBN12-3, 0.4220 in, T-10 Torx Key, TS-44-3M Insert Torx Screw, Roughing to Finishing, Right Hand
