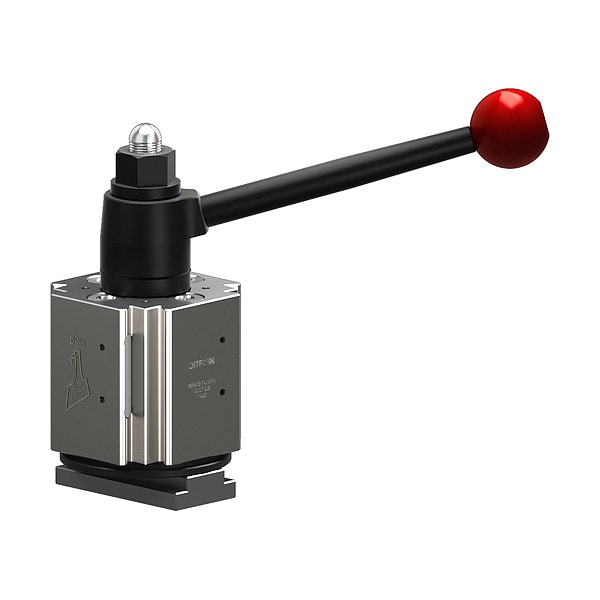

Tool Post, QUADRA, QITP25N, Up To 12 In

  • Mfr # QITP25N

  • Zoro # G8312297

product price:  $1,583.99
/ea
Free Shipping & Returns

Key Features

Type
Quadra 4-Station
Series
QITP25N
Swing (In.)
Up to 12
Capacity
1/2 to 3/4"
Height Adjustment
0.995 to 1.849"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
QITP25N
Zoro #
G8312297
UPC #
-
Country of Origin
United States

Dimensions

Height Adjustment
0.995 to 1.849"
Dimension C (In.)
5.210
Dimension D (In.)
0.500
Dimension B (In.)
2.710
Dimension A (In.)
2.500
Center Height
1.425"
Dimension F (In.)
1.422
Dimension E (In.)
0.880
Max. Centerline Height
12 in
Tool Post Height
5.2100 in
Thread Size
1/2"-20
Body Height
2.57 in
Body Width
2.5 in
Tool Holder Size - Minimum
1/2 in
Centerline Height - Maximum
1.849 in
Tool Holder Size - Maximum
3/4 in
Overall Height
5.21 in

Details

Item
Tool Post
Type
Quadra 4-Station
Series
QITP25N
Swing (In.)
Up to 12
Capacity
1/2 to 3/4"
Thread
1/2-20
Features
(2) Pre-Loaded Index Pins, Bottom Locking Plate, Disengaging Springs, Indexing Repeatability Within 0.00005 in, Tool Holder Repeatability Within 0.0001 in, Tool Holder Station Locks 1 to 4 Tool Holders Simultaneously or Independently
Lock
Positive
For Use With
QITP25N Holders
Includes
Blank T-Nut for Customer to Machine to Own Specifications
Number of Positions
24
Lathe Swing
Up to 12 in
Centerline-to-Body
0.88 in
Compatible Manufacturer Model Number
QITP25N-1, QITP25N-2, QITP25N-36, QITP25N-4-750 DUAL, QITP25N-4M-20-DUAL, QITP25N-7-71C, QITP25N-881-OE
Tool Post Series
QITP25N
Compatible Lathe Swing - Maximum
12 in
Repeatability
0.00005 in

Description

Tool Post, Quadra 4-Station, Lathe Swing Up to 12 in, Max. Centerline Height 12 in, Series QITP25N, Body Height 2.57 in, Tool Post Height 5.2100 in, Thread Size 1/2 In.-20, Centerline-to-Body 0.88 in
