  9. Tool Post, Quick Change, SDN30, 13-15 In

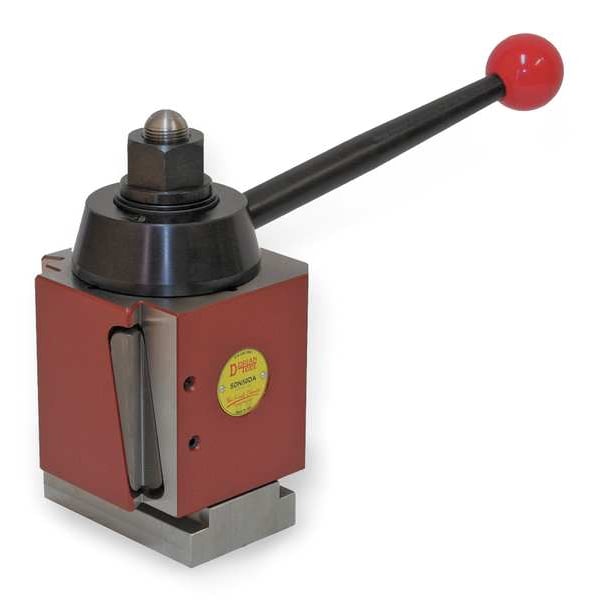

Dorian Tool Post, Quick Change, SDN30, 13-15 In SDN30BXA - main

Tool Post, Quick Change, SDN30, 13-15 In

  • Mfr # SDN30BXA

  • Zoro # G8216363

product price: $780.99
/ea
Free Shipping & Returns

Key Features

Type
Super Quick Change 2-Station
Series
SDN30BXA
Swing (In.)
13 to 15
Capacity
5/8 to 1"
Height Adjustment
1.062 to 1.937"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SDN30BXA
Zoro #
G8216363
UPC #
073310101002
Country of Origin
United States

Dimensions

Height Adjustment
1.062 to 1.937"
Dimension A (In.)
3.000
Dimension B (In.)
2.750
Dimension E (In.)
1.115
Center Height
1.312"
Dimension F (In.)
1.312
Dimension C (In.)
4.710
Dimension D (In.)
0.625
Thread Size
5/8"-18
Tool Post Height
4.7100 in
Body Height
2.75 in
Max. Centerline Height
13 in to 15 in
Centerline Height - Maximum
1.937 in
Tool Holder Size - Minimum
5/8 in
Overall Height
4.71 in
Body Width
3 in
Tool Holder Size - Maximum
1 in

Details

Item
Tool Post
Type
Super Quick Change 2-Station
Series
SDN30BXA
Swing (In.)
13 to 15
Capacity
5/8 to 1"
Features
Locking Handle Remains at 45 Degrees in the Locked Position, Tool Holder Station Locks 1 Tool Holder Per Application
For Use With
BXA Holders
Lock
Positive
Includes
Blank T-Nut for Customer to Machine to Own Specifications
Thread
5/8-18
Number of Positions
1
Lathe Swing
13 in to 15 in
Centerline-to-Body
1.115 in
Tool Post Series
BXA
Compatible Manufacturer Model Number
D30BXA-1, D30BXA-2, D30BXA-35, D30BXA-36, D30BXA-4-1000-DUAL, D30BXA-41-1250-DUAL, D30BXA-41M-32-DUAL, D30BXA-4M-25-DUAL, D30BXA-7-71C, D30BXA-881-OE
Compatible Lathe Swing - Maximum
15 in
Repeatability
0.0001 in
Compatible Lathe Swing - Minimum
13 in

Description

Tool Post, Super Quick Change 2-Station, Lathe Swing 13 in to 15 in, Max. Centerline Height 13 in to 15 in, Series SDN30BXA, Body Height 2.75 in, Tool Post Height 4.7100 in, Thread Size 5/8 In.-18, Centerline-to-Body 1.115 in
