  11. Triangle Turning Insert, Triangle, 1/4 in, TPGH, 0.0156 in, Carbide

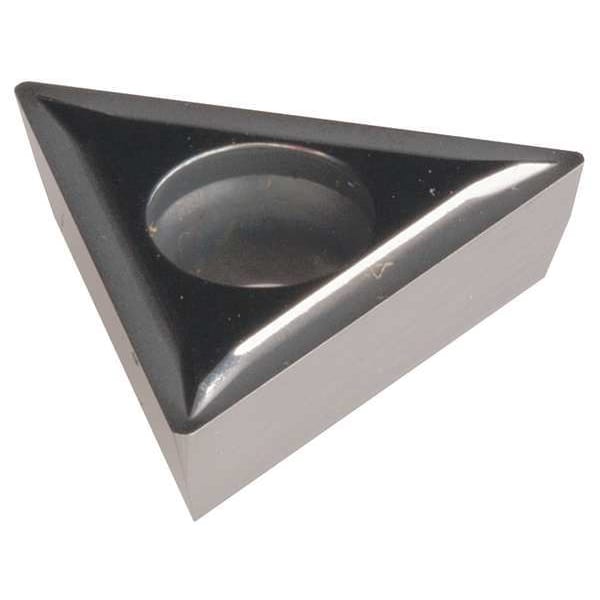

Dorian Triangle Turning Insert, Triangle, 1/4 in, TPGH, 0.0156 in, Carbide 73310171704 - main

Triangle Turning Insert, Triangle, 1/4 in, TPGH, 0.0156 in, Carbide

  • Mfr # 73310171704

  • Zoro # G9247506

product price: $16.45
/ea

Key Features

Insert Shape
Triangle
Insert Style
TPGH
Inscribed Circle
1/4 in
Insert Size
21.51
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
73310171704
Zoro #
G9247506
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
21.51
Corner Radius
0.0156 in
Insert Thickness
0.0937"
Nose Radius
0.015"
Mounting Hole Dia.
0.120"
Thickness
0.0937 in
Through Hole Inside Dia.
0.125 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TPGH
Inscribed Circle
1/4 in
Chip-Breaker
Yes
Grade
DPP30GT
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
TPGH110204-UEN
Cast Iron (K) Compatibility
No
Coating
PVD-TiN
Stainless (M) Compatibility
Yes
Super Alloy (S) Compatibility
No
For Use With
Toolholders
No. of Edges
3
Steel (P) Compatibility
Yes
Relief Angle
11 Degrees
ANSI Number
TPGH-21.51-UEN-DPP30GT
Mounting Style
Torx Screw
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
Workpiece Compatibility
Stainless (M), Steel (P)
Hardened (H) Compatibility
No
Feed Type
Medium
Clearance Angle
11 Degrees
Primary Material Application ISO Code
K, M, P
Chip-Breaker Code
UEN
Manufacturer Grade
DPP30GT
Insert Holding Type
70 Degrees to 90 Degrees Countersink Hole
Finish - Machining
TiN
Material - Machining
Carbide
Coating Process
PVD
Number of Cutting Edges
3
Measurement System
Fractional Inch
Cutting Application
Light Interrupted Cutting
ANSI Code
TPGH21.51-UEN
Cutting Edge
Honed
Shape
Triangle
Primary Material Application
Cast Iron, Stainless Steel, Steel
Included Angle
60 Degrees
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code UEN, Inscribed Circle 1/4 in, TiN
