Dormont

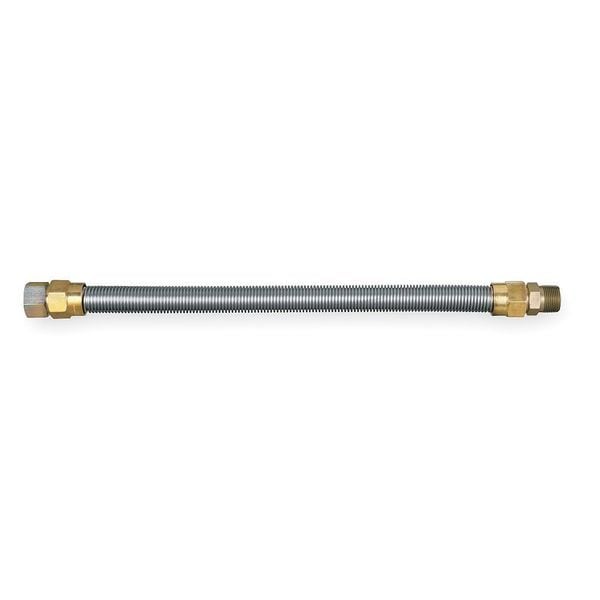

Gas Connector, SS, 3/4 x 24 In, 290,900 Btu

product price: $55.85
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Hose Configuration Coupled Assembly
  • Hose Inside Dia. 3/4 in
  • Hose Length 24 in
  • Hose Tube Material 304 Stainless Steel
  • Hose Color Silver
See all product information

Product Information

Dimensions

Hose Inside Dia. 3/4 in
Hose Length 24 in
Length (In.) 24
Size 3/4"
Outside Dia. (In.) 1
Hose Fitting A Size 3/4 in
Hose Outside Dia. 1 in
Hose Fitting B Size 3/4 in
Fitting Size 3/4 in x 3/4 in

Details

Hose Configuration Coupled Assembly
Hose Tube Material 304 Stainless Steel
Hose Color Silver
Max. Working Pressure @ 70 F 0.5 psi
Temp. Range -40 Degrees to 350 Degrees F
Standards ANSI Z21.15, ANSI Z21.18/CSA 9.1, ANSI Z21.24, ANSI Z21.41, ANSI Z21.69, ANSI Z21.90, ANSI/UL 567, CSA 6.16, CSA 6.24. CSA 6.9, CSA 6.3
Item Gas Connector
For Use With Tankless Water Heaters and Boilers
BTU Capacity 290,900
Material of Construction stainless steel
Connection 3/4" MIP x 3/4" FIP
Connector Flow (Btu) 290,900
Application Boilers, Furnaces, Commercial Water Heaters, Tankless Water Heaters, Gas Pack/Rooftop HVAC Units, Gas Meters
Fitting Type FNPT x FNPT
Fitting Material 304 Stainless Steel x 304 Stainless Steel
Hose Fittings 304 Stainless Steel 3/4 in FNPT x 304 Stainless Steel 3/4 in FNPT
Hose Fitting B Material 304 Stainless Steel
Hose Fitting A Type FNPT
Hose Fitting B Type FNPT
Hose Fitting A Material 304 Stainless Steel

Description

Gas Connector, Hose Inside Dia. 3/4 in, Hose Outside Dia. 1 in, Hose Length 24 in, Hose Color Silver, Hose Tube Material 304 Stainless Steel, Max. Working Pressure @ 70 F 0.5 psi, Temp. Range -40 Degrees to 350 Degrees F, Standards ANSI Z21.15, ANSI Z21.18/CSA 9.1, ANSI Z21.24, ANSI Z21.41, ANSI Z21.69, ANSI Z21.90, ANSI/UL 567, CSA 6.16, CSA 6.24. CSA 6.9, CSA 6.3, Hose Fitting A Material 304 Stainless Steel, Hose Fitting B Material 304 Stainless Steel, Hose Fitting A Type FNPT
