  9. Power Qlty Anlz Kit, 100A, HDPQ Guide
Shop All Power Meters and Analyzers
Dranetz

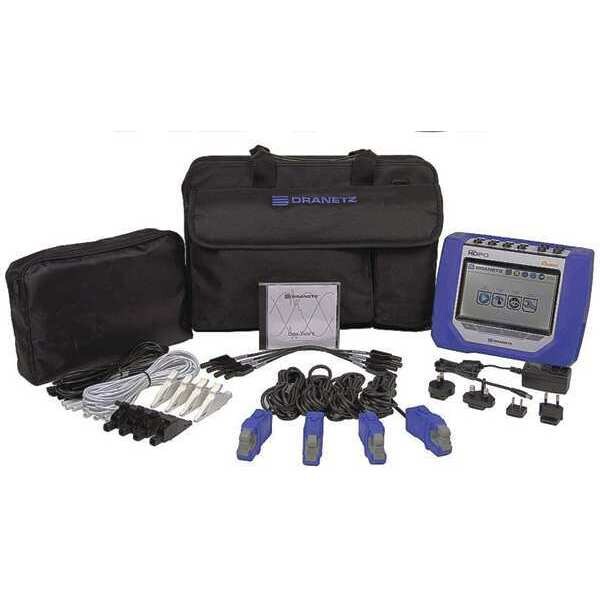

Power Qlty Anlz Kit, 100A, HDPQ Guide

Hover or click to zoom Tap to zoom
Help us improve our product images
Key Features
  • Item: Power Quality Analyzer Kit
  • Sampling Rate: 512 s/c
  • Phase: 4
  • Includes: (4) TR2550B CT's, AC Power Supply, Dran-View Ent, Dranetz HDPQ Guide, Soft Carry Case, Voltage Cable Set
  • Max. Watts: 100 TW
  • Kit Current Capability: 1 to 100A
  • Display: Color LCD Touch Screen
  • Current Accuracy: +/-0.1%
See full product details
$7,321.60
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Dranetz #HDPQ-P-GA550PKG Specifications

  • Item: Power Quality Analyzer Kit
  • Sampling Rate: 512 s/c
  • Phase: 4
  • Includes: (4) TR2550B CT's, AC Power Supply, Dran-View Ent, Dranetz HDPQ Guide, Soft Carry Case, Voltage Cable Set
  • Max. Watts: 100 TW
  • Kit Current Capability: 1 to 100A
  • Display: Color LCD Touch Screen
  • Current Accuracy: +/-0.1%
  • Safety Rating: CAT III 1000V, CAT IV 600V
  • Peak Capture: Yes
  • Calibration Frequency: 45 to 65 Hz
  • Power Factor: 0 to 1
  • Min. Transient Duration: 32 mS
  • Storage: 4 GB
  • Calibration Certificate: NIST
  • Voltage Accuracy: +/-0.1%
  • AC Response: TRMS
  • Max. DC Voltage: 1000V
  • Max. AC Amps: 100 A
  • Max. VA: 100TVA
  • Max. AC Voltage: 1,000
  • Harmonic Capture Range: 63rd
  • Voltage Channels: 4
  • Current Channels: 4
  • Display Resolution: 800 x 480
  • Data Logging: Yes
  • Crest Factor: I=3, V=2
  • Manufacturers Warranty Length: 3 yr
  • Country of Origin (subject to change): United States

Description

Power Quality Analyzer Kit, 4 Phase, 100 TW Max. Watts, Kit Current Capability 1 to 100 A, 100 A Max. AC Amps, 4 Current Channels, 1,000 Max. AC Voltage, 4 Voltage Channels, Calibration Frequency 45 to 65 Hz, TRMS AC Response, Display Color LCD Touch Screen, Safety Rating CAT III 1000V, CAT IV 600V, Data Logging Yes, Calibration Certificate NIST, Includes (4) TR2550B CT's, AC Power Supply, Dran-View Ent, Dranetz HDPQ Guide, Soft Carry Case, Voltage Cable Set, Manufacturers Warranty Length 3 yr
