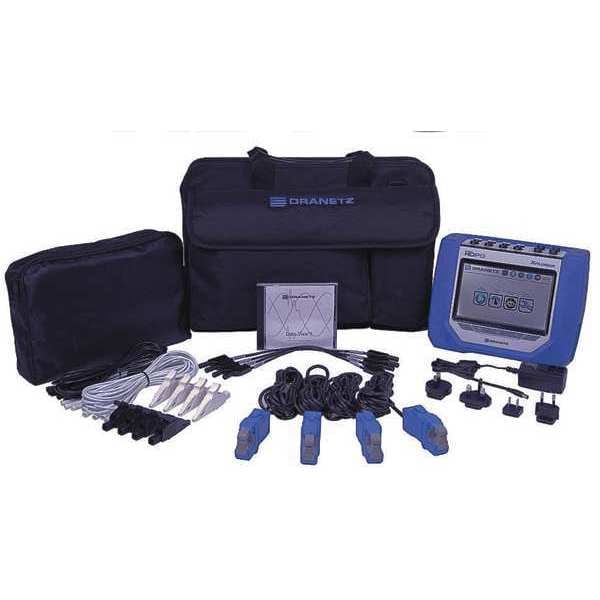

Dranetz Power Qlty Anlz Kit, 10A, HDPQ Xplorer HDPQ-P-XA10PKG - main

Power Qlty Anlz Kit, 10A, HDPQ Xplorer

  • Mfr # HDPQ-P-XA10PKG

  • Zoro # G8579462

product price:  $14,949.99
/ea
Free Shipping & Returns

Key Features

Sampling Rate
512 sec/cycle
Phase
4
Includes
(4) TR2510B CT's, AC Power Supply, Dran-View Ent, Dranetz HDPQ Xplorer, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Kit Current Capability
1 to 10 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HDPQ-P-XA10PKG
Zoro #
G8579462
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr

Details

Item
Power Quality Analyzer Kit
Sampling Rate
512 sec/cycle
Phase
4
Includes
(4) TR2510B CT's, AC Power Supply, Dran-View Ent, Dranetz HDPQ Xplorer, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Kit Current Capability
1 to 10 A
Display
Color LCD Touch Screen
Voltage Channels
4
Current Accuracy
+/-0.1%
Min. Transient Duration
32 mS
Current Channels
4
Storage
4 GB
Harmonic Capture Range
127/63
Display Resolution
800 x 480
Max. DC Voltage
1,000V
AC Response
TRMS
Max. AC Voltage
1,000
Peak Capture
Yes
Max. VA
100 TVA
Crest Factor
I=3, V=2
Safety Rating
CAT III 1000V, CAT IV 600V
Calibration Frequency
45 to 65 Hz
Data Logging
Yes
Power Factor
0 to 1
Max. AC Amps
10 A
Calibration Certificate
NIST
Voltage Accuracy
+/-0.1%
Communication Protocol
Ethernet, Optional Bluetooth, USB, VNC Remote Control, Wi-Fi
IP Rating
IP65
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
122 Degrees F
Maximum AC Current Measured
10 A
Power Source
AC Adapter, Battery
Calibration Certificate Included
NIST Not Traceable
Testing Functions
Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Data Output Type
Ethernet, Bluetooth, USB, Wi-Fi

Description

Power Quality Analyzer Kit, CAT Safety Rating CAT III 1000V, CAT IV 600V, Calibration Certificate NIST, Current Channels 4, Includes (4) TR2510B CT's, AC Power Supply, Dran-View Ent, Dranetz HDPQ Xplorer, Soft Carry Case, Voltage Cable Set, Maximum AC Current Measured 10 A, Maximum DC Current Measured Not Applicable, Peak Capture Yes, Power Factor 0 to 1, Testing Functions Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage, Voltage Channels 4
