Shop EXTECH

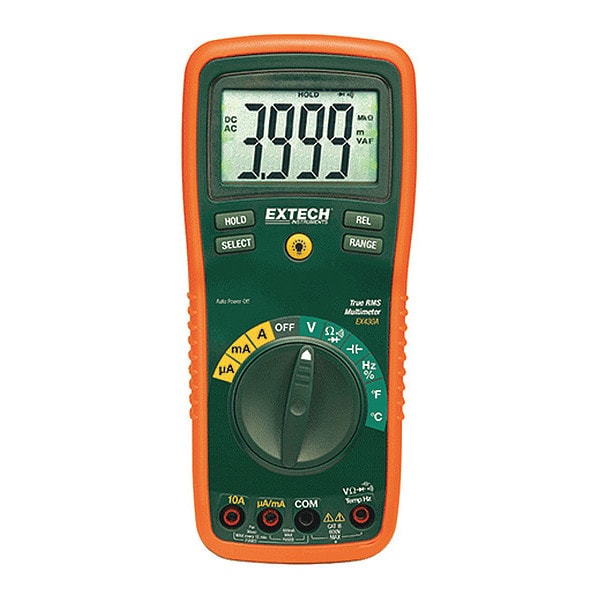

Digital Multimeter, 600 V Max DC, 0.1 V Max AC, TRMS, 4,000 Instrument Counts, LCD

  • Mfr # EX430A
  • Zoro # G5722344
product price:
$
239.00
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Display Type
LCD
Data Hold
Yes
Instrument Counts
4,000
Includes
Battery, Tilt Stand, Protective Holster, Test Leads, Type K Temperature Probe, Hanging Strap
Standards
CE
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EX430A
Zoro #
G5722344
UPC #
793950411308
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr
Overall Height
7.4 in
Overall Width
3.2 in
Depth
2 in
Battery Size
9V
True RMS Bandwidth
1 kHz
Pulse Width
Yes

Details

Item
Digital Multimeter
Display Type
LCD
Data Hold
Yes
Instrument Counts
4,000
Includes
Battery, Tilt Stand, Protective Holster, Test Leads, Type K Temperature Probe, Hanging Strap
Standards
CE
Auto Power Off
Yes
Data Logging
No
Audible Continuity
No
Diode Test
Yes
Peak Hold
No
Temp. Range
-4 Degrees to 1382 Degrees F
Duty Cycle
Duty Cycle Test Included
NIST Certification By
Not Certified
Max. Ohms
40 megohm
Max. DC Amps
10 A
Interface
None
Instrument Safety Rating
CAT III 600V
Capacitance Range
0.01 nF to 100 uF
Auto Ranging
Yes
Display
LCD
AC Response
TRMS
Instrument Frequency Counter Range
0.001 Hz to 10 MHz
Series
EXTECH(R) EX400A
Max. AC Amps
10 A
Basic DC Accuracy
+/-0.30%
Calibration Certificate Included
No Certification Included
Intrinsically Safe
No
Current Leakage Testing
No
Removable Screen
No
Battery Chemistry
Alkaline
Minimum Operating Temperature
41 Degrees F
Maximum DC Current Measurement
10 A
Minimum AC Current Measurement
0 uA
Basic AC Voltage Accuracy
+/-1.50%
Minimum DC Current Measurement
0 uA
Thermal Imaging
No
Maximum Operating Temperature
104 Degrees F
AC Current Measurement Resolution
0.1 uA
Maximum Capacitance Measurement
100 uF
Capacitance Measurement Accuracy
+/-3%
Batteries Included
Yes
NIST Certification By Manufacturer
FLIR
Computer Interface Connection Type
None
Bar Graph Included
No
Frequency Measurement Resolution
0 Hz
DC Voltage Measurement Resolution
0.1 V
Maximum Resistance Measurement
40 megaohm
DC Current Measurement Resolution
0.1 uA
Basic AC Current Accuracy
+/-1.8%
Frequency Measurement Accuracy
+/-3%
AC Response Calculation
TRMS
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Capacitance Measurement Resolution
0.01 nF
Software Included
No
AC Voltage Measurement Resolution
0.1 V
Resistance Measurement Resolution
0.1 ohm
Minimum Storage Temperature
-4 Degrees F
Dustproof
No
Battery Access
Yes
Basic DC Voltage Accuracy
+/-0.30%
Temperature Measurement Accuracy
+/-3.00%
Minimum Resistance Measurement
0.1 ohm
Maximum AC Current Measurement
10 A
Maximum DC Voltage Measurement
600V DC
Maximum AC Voltage Measurement
600V AC
Maximum Frequency Measurement
10 MHz
Battery Voltage
9 V
Minimum Capacitance Measurement
0.01 nF
Temperature Measurement Resolution
1 Degrees F
Minimum DC Voltage Measurement
0 mV DC
Maximum Temperature Measurement
1,382 Degrees F
Bluetooth Compatible
No
Waterproof
No
Basic DC Current Accuracy
+/-1.5%
Maximum Storage Temperature
140 Degrees F
Weight
0.75 lb
Minimum Temperature Measurement
-4 Degrees F
Minimum AC Voltage Measurement
0 mV AC
Resistance Measurement Accuracy
+/-1%
Minimum Frequency Measurement
0 Hz
Fuse Access
Yes
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
Special Features
10A Max Current, AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Diode/Continuity, Duty Cycle, Complete with CAT III Test Leads, Tilt Stand, Protective Holster, Velcro Hanging Strap, Type K Bead Wire Temp Probe and 9V Battery, Data Hold, Relative, Auto Power Off, Input Fuse Protection and Mis-Connection Warning, Large-Digit Backlit LCD, True-RMS DMM with 11 Functions and 0.3% Basic Accuracy, Type K Temperature Measurements
CAT Safety Rating
CAT III 600V
Current Units
A, mA, uA
IP Rating
Not Rated
Includes Auto Sensing
No Auto Sensing Included
Voltage Units
mV, V

Description

Digital Multimeter, Audible Continuity No, Basic AC Voltage Accuracy +/-1.50 Percent, Basic DC Voltage Accuracy +/-0.30 Percent, Data Hold Yes, Basic DC Current Accuracy +/-1.5 Percent, Instrument Safety Rating CAT III 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 4,000
