Drill America

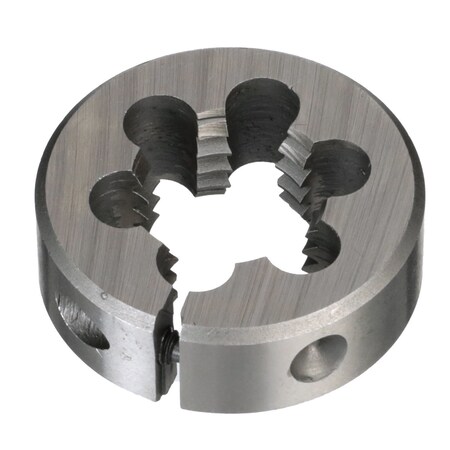

m8x1 1"OD HSS Round Die

Drill America m8x1 1"OD HSS Round Die DWTMR1-8X1
Hover or click to zoom Tap to zoom
$13.70
  • Item: Round Die
  • Die Thread Size: m8 x 1
  • Die Material: High Speed Steel
See full product details
Orders over $75 ship free.
Total: $13.70

Drill America #DWTMR1-8X1 Specifications

  • Item: Round Die
  • Die Thread Size: m8 x 1
  • Die Material: High Speed Steel
  • Outside Dia. (In.): 1"
  • Cutting Direction: Right Hand
  • Finish: Uncoated (Bright)
  • Country of Origin (subject to change): China

Description

For threading, a High Speed Steel Round Adjustable Die is desired for improved wear life. Round Dies are chamfered on both faces. One side has a 2 to 3 thread chamfer for threading, the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder. Adjustment is obtained by a fine pitch screw which forces the sides of the die apart, or allows them to spring together. The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder

Restrictions and Compliance

  • This item has been restricted from sale in the following states: No
