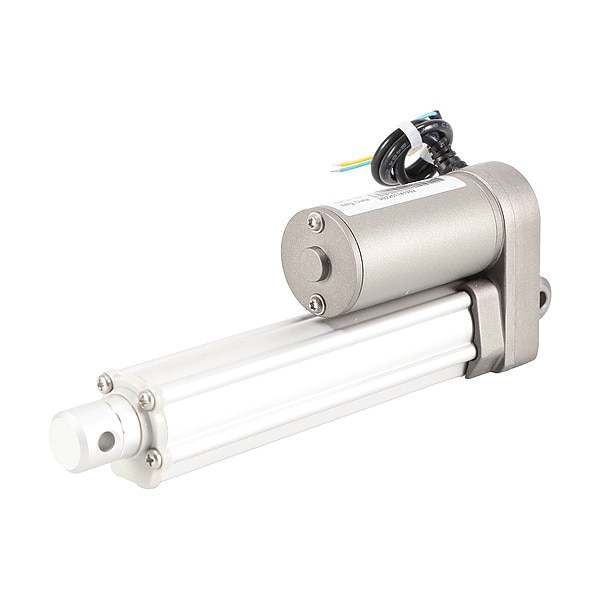

Linear Actuator, 112 lbf, 12V DC
Mfr # LT100-1-100
Zoro # G209215240
product price: $496.99
/ea
Free Shipping & Returns
Key Features
Rated Load
112 lb
Stroke Length
4 in
Speed @ Rated Load
0.5 in/sec
Duty Cycle
20 %
Voltage
12V DC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
LT100-1-100
Zoro #
G209215240
UPC #
-
Country of Origin
China
Dimensions
Stroke Length
4 in
Retracted Length
8 in
Overall Width
1.6 in
Overall Height
3 in
Description
Linear Actuator, Motor Type DC, Voltage 12V DC, Nut Material Plastic, Load Capacity 112 lbf, Stroke Length 4 in, Speed at Full Load 0.5 in/sec, Duty Cycle 20 Percent, Full Load Current 3.5 A, Retracted Length 8 in, Gear Material Metal, Drive System Type Gear, Enclosure IP Rating IP66, Includes Potentiometer Potentiometer Included, Housing Finish Polished, Housing Material Zinc Die Cast, Limit Switch Setting Fixed, Operating Temperature - Maximum 150 Degrees F
