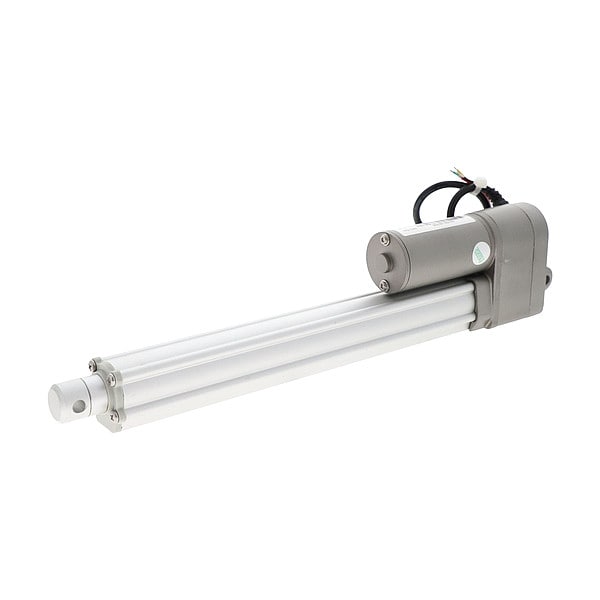

Linear Actuator, 112 lbf, 24V DC
Mfr # LT100-2-200P
Zoro # G509215469
product price: $648.99
/ea
Free Shipping & Returns
Key Features
Rated Load
112 lb
Stroke Length
7.9 in
Speed @ Rated Load
0.5 in/sec
Duty Cycle
20 %
Voltage
24V DC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
LT100-2-200P
Zoro #
G509215469
UPC #
-
Country of Origin
China
Dimensions
Stroke Length
7.9 in
Retracted Length
12 in
Overall Height
3 in
Overall Width
1.6 in
Description
Linear Actuator, Motor Type DC, Voltage 24V DC, Nut Material Plastic, Load Capacity 112 lbf, Stroke Length 7.9 in, Speed at Full Load 0.5 in/sec, Duty Cycle 20 Percent, Full Load Current 2 A, Retracted Length 12 in, Gear Material Metal, Drive System Type Gear, Enclosure IP Rating IP66, Includes Potentiometer Potentiometer Included, Housing Finish Polished, Housing Material Zinc Die Cast, Limit Switch Setting Fixed, Operating Temperature - Maximum 150 Degrees F
