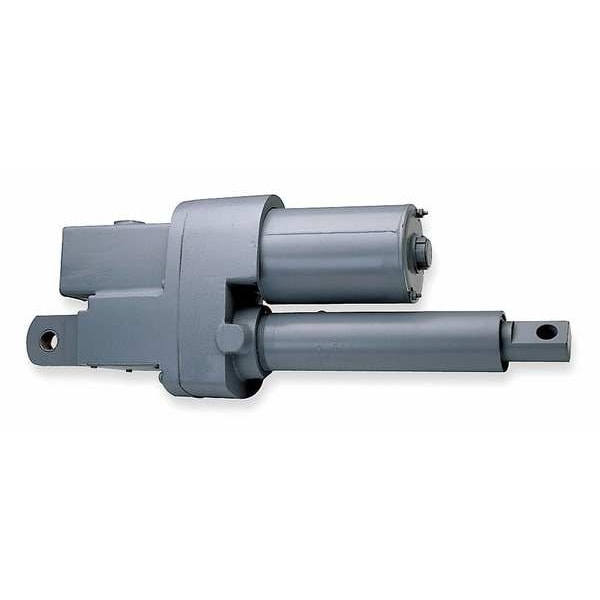

Linear Actuator, 115VAC, 1500 lb., 6 In

  • Zoro #: G1848585
  • Mfr #: SPA6415-6
$1,475.29
  • Limit Switch Type: Internal Adjustable
  • Retracted Length: 20 in
  • Hz: 60
See full product details
This item ships free.

Duff-Norton #SPA6415-6 Specifications

  • Zoro #: G1848585
  • Mfr #: SPA6415-6
Limit Switch Type: Internal Adjustable Retracted Length: 20 in
Hz: 60 Clutch Included: No
Max. Ambient Temp.: 50 Degrees C/120 Degrees F Item: Linear Actuator
Dimension G: 15.75 in Duty Cycle: 17 %
Mounting Type: Double Clevis Enclosure Type: Totally Enclosed Non Ventilated
Speed @ Rated Load: 50 in/min Nut Material: Bronze
Standards: UL Listed, C-UL Listed, CSA Certified Dimension D: 0.75 in
Full Load Amps: 6.5 A Drive System Type: Gear
Screw Type: Acme Dimension C: 5.75 in
Feedback Signal: No Stroke Length: 6 in
Thermal Protection: Automatic Dimension F: 1 in
Capacitor Required: Yes Dimension B: 2.12 in
Motor Type: Permanent Split Capacitor Housing Material: Aluminum
Voltage: 115V AC Capacitor Included: Yes
Dimension E: 2.3 in Rated Load: 1,500 lb
Footnotes: 3 Width:
Bearing Type: Ambient Temp. Range:
Replaces Honeywell Motors: Torque:
Includes: Power Consumption:
Signal Type: Power Rating:
Shaft Type: Gear Material:
Finish: Timing:
Dimension A: Features:
Phase: Motor Direction:
Dimension N: Stroke Deg.:
Height: Seal Guide Material:
Dimension J: Switch Type:
Dimension M: Gear Case Type:
For Use With: Dimension L:
Electrical Connections: Dimension H:
Spring Return: Depth:
Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Linear Actuator, Rated Load 1,500 lb, Stroke Length 6 in, Speed @ Rated Load 50 in/min, Duty Cycle 17 Percent, Voltage 115V AC, 6.5 A Full Load Amps, Retracted Length 20 in, Hz 60, Max. Ambient Temp. 50 Degrees C/120 Degrees F, Enclosure Type Totally Enclosed Non Ventilated, Motor Type Permanent Split Capacitor, Thermal Protection Automatic, Capacitor Included Yes, Yes Capacitor Required, No Feedback Signal, Limit Switch Type Internal Adjustable, Clutch Included No, Drive System Type Gear
