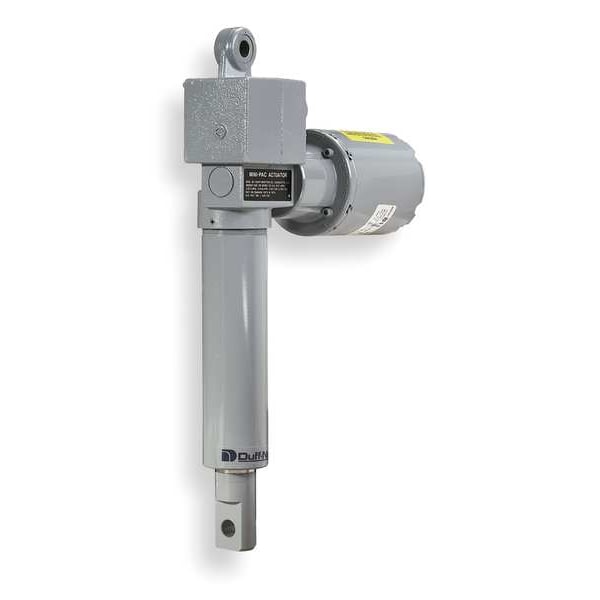

Linear Actuator, 115VAC, 500 lb., 6 In

DUFF-NORTON| Zoro #: G2302596| Mfr #: GMPB6905-6

$562.50 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2302596 Mfr #: GMPB6905-6
Enclosure Type: Totally Enclosed Non VentilatedMax. Ambient Temp.: 50 Degrees C/120 Degrees F
Feedback Signal: NoMounting Type: Double Clevis
Housing Material: AluminumItem: Linear Actuator
Capacitor Required: YesLimit Switch Type: Adjustable
Screw Type: SteelFootnotes: 3
Voltage: 115VACFull Load Amps: 2.2
Motor Type: Permanent Split CapacitorThermal Protection: Automatic
Standards: UL, cUL or CSADimension D: 0.51"
Hz: 60Dimension C: 8.19"
Speed @ Rated Load: 35 in./min.Rated Load: 500 lb.
Nut Material: BronzeDrive System Type: Gear
Stroke Length: 6"Retracted Length: 14-1/4"
Dimension G: 5.69"Capacitor Included: Yes
Duty Cycle: 28%Dimension F: 0.75"
Dimension B: 1.75"Dimension E: 1.72"
Country of Origin (subject to change): United States

Product Description

Linear Actuator, Rated Load 500 lb., Stroke Length 6 In., Speed @ Rated Load 35 in./min., Duty Cycle 28 Percent, Voltage 115VAC, 2.2 Full Load Amps, Retracted Length 14-1/4 In., Hz 60, Max. Ambient Temp. 50 Degrees C/120 Degrees F, Enclosure Type Totally Enclosed Non Ventilated, Motor Type Permanent Split Capacitor, Thermal Protection Automatic, Capacitor Included Yes, Yes Capacitor Required, No Feedback Signal, Limit Switch Type Adjustable, Drive System Type Gear, Screw Type Steel
