  6. Linear Actuator, 12VDC, 500 lb., 18 In

This item is Discontinued.

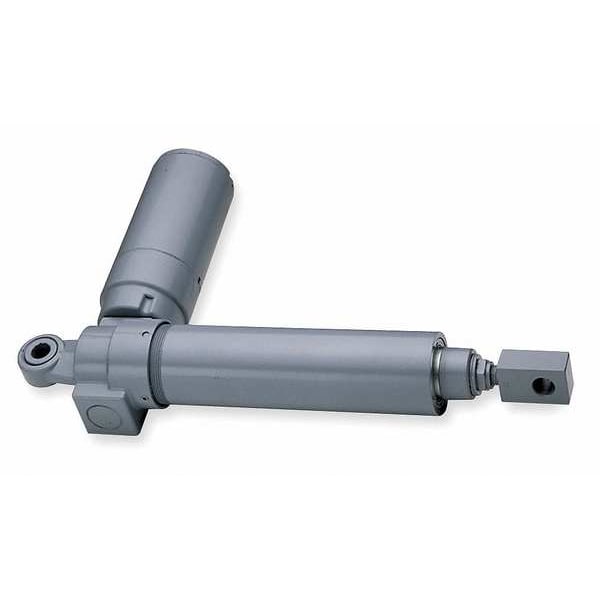

Duff-Norton Linear Actuator, 12VDC, 500 lb., 18 In MPD6405-18

Linear Actuator, 12VDC, 500 lb., 18 In (Discontinued)

  • Mfr # MPD6405-18
  • Zoro # G2553293
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
MPD6405-18
Zoro #
G2553293
UPC #
-
Country of Origin
United States

Dimensions

Stroke Length
18 in
Retracted Length
26.25 in
Dimension G
3.27 in
Dimension E
1.32 in
Dimension F
0.75 in
Dimension D
0.51 in
Dimension B
1.38 in
Dimension C
7.69 in

Details

Item
Linear Actuator
Rated Load
500 lb
Speed @ Rated Load
42 in/min
Duty Cycle
18 %
Voltage
12V DC
Full Load Amps
11 A
Clutch Included
Yes
Nut Material
Bronze
Capacitor Required
No
Footnotes
1,3
Mounting Type
Double Clevis
Standards
C-UL Listed, CSA Certified, UL Listed
Thermal Protection
Automatic
Capacitor Included
No
Screw Type
Acme
Enclosure Type
Totally Enclosed Non Ventilated
Hz
60
Feedback Signal
No
Housing Material
Aluminum
Drive System Type
Gear
Max. Ambient Temp.
50 Degrees C/120 Degrees F
Motor Type
Permanent Magnet
Series
MPD
IP Rating
IP50
Motor Type Voltage
DC Motor
Full Load Current
11 A

Description

Linear Actuator, Motor Type Permanent Magnet, Voltage 12V DC, Nut Material Bronze, Stroke Length 18 in, Duty Cycle 18 Percent, Full Load Current 11 A, Retracted Length 26.25 in, Drive System Type Gear, Housing Material Aluminum, Mounting Type Double Clevis, Standards C-UL Listed, CSA Certified, UL Listed

Restrictions

Hazardous material
