  11. Linear Actuator, 1500 lbf, 115V AC

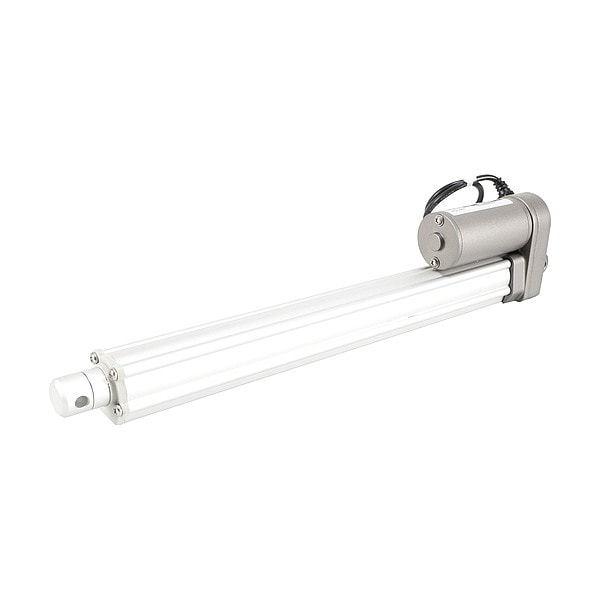

Duff-Norton Linear Actuator, 1500 lbf, 115V AC SPA6415-18 - main

Linear Actuator, 1500 lbf, 115V AC

  • Mfr # SPA6415-18

  • Zoro # G709215290

product price: $4,207.99
/ea
Free Shipping & Returns

Key Features

Rated Load
1,500 lb
Stroke Length
18 in
Speed @ Rated Load
0.83 in/sec
Duty Cycle
17 %
Voltage
115V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SPA6415-18
Zoro #
G709215290
UPC #
-
Country of Origin
China

Dimensions

Stroke Length
18 in
Retracted Length
32.1 in
Overall Width
4.6 in
Overall Height
7.938 in

Details

Item
Linear Actuator
Rated Load
1,500 lb
Speed @ Rated Load
0.83 in/sec
Duty Cycle
17 %
Voltage
115V AC
Full Load Amps
6.5 A
Thermal Protection
Automatic
Limit Switch Type
Internal Adjustable
Screw Type
Acme
Feedback Signal
Potentiometer
Nut Material
Bronze
Drive System Type
Acme Screw
Max. Ambient Temp.
48.8 Degrees C/120 Degrees F
Housing Material
Aluminum
Capacitor Included
Yes
Hz
60 Hz
Includes
Built-In Capacitor
Finish
Zinc Chromate Plated
Capacitor Required
Yes
Enclosure IP Rating
IP52
Includes Capacitor
Capacitor Included
Frequency
60 Hz
Load Capacity
1,500 lbf
Includes Thermal Protection
Thermal Protection Included
Operating Temperature - Minimum
15 Degrees F
Limit Switch Setting
Adjustable
Housing Finish
Zinc Chromate Plated
Operating Temperature - Maximum
120 Degrees F
System of Measurement
Inch, Metric
Speed at Full Load
0.9 in/sec
Full Load Current
6.5 A
Speed at No Load
1.72 in/sec
Series
SPA

Description

Linear Actuator, Voltage 115V AC, Nut Material Bronze, Load Capacity 1,500 lbf, Stroke Length 18 in, Speed at Full Load 0.9 in/sec, Duty Cycle 17 Percent, Full Load Current 6.5 A, Retracted Length 32.1 in, Includes Capacitor Capacitor Included, Drive System Type Acme Screw, Enclosure IP Rating IP52, Housing Finish Zinc Chromate Plated, Frequency 60 Hz, Housing Material Aluminum, Limit Switch Setting Adjustable, Operating Temperature - Maximum 120 Degrees F
