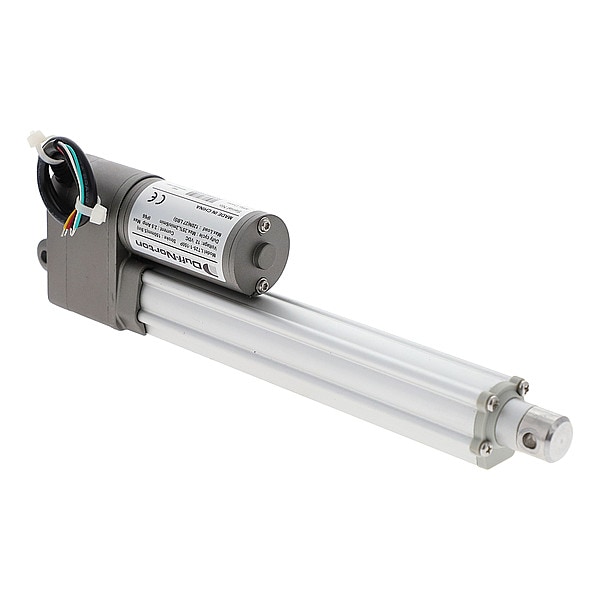

Linear Actuator, 27 lbf, 12V DC
Mfr # LT25-1-150
Zoro # G209215325
product price: $564.99
/ea
Free Shipping & Returns
Key Features
Rated Load
27 lb
Stroke Length
5.9 in
Speed @ Rated Load
1.3 in/sec
Duty Cycle
20 %
Voltage
12V DC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
LT25-1-150
Zoro #
G209215325
UPC #
-
Country of Origin
China
Dimensions
Stroke Length
5.9 in
Retracted Length
10 in
Overall Height
3 in
Overall Width
1.6 in
Description
Linear Actuator, Motor Type DC, Voltage 12V DC, Nut Material Plastic, Load Capacity 27 lbf, Stroke Length 5.9 in, Speed at Full Load 1.3 in/sec, Duty Cycle 20 Percent, Full Load Current 2.5 A, Retracted Length 10 in, Gear Material Metal, Drive System Type Gear, Enclosure IP Rating IP66, Includes Potentiometer Potentiometer Included, Housing Finish Polished, Housing Material Zinc Die Cast, Limit Switch Setting Fixed, Operating Temperature - Maximum 150 Degrees F
