  11. Linear Actuator, 450 lbf, 115V AC

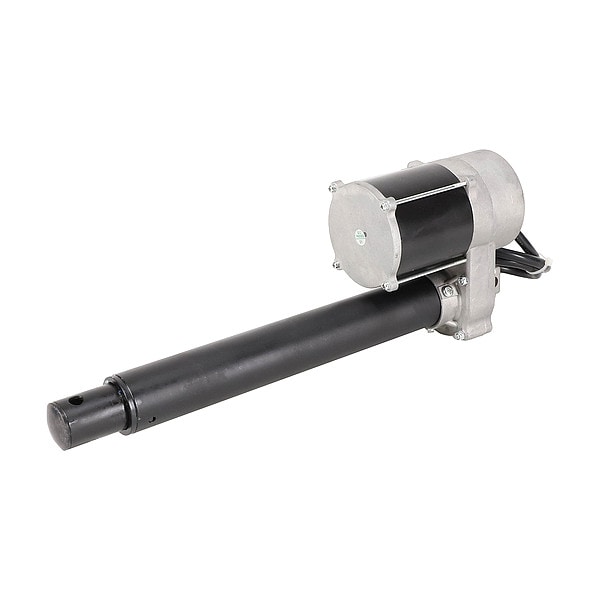

Duff-Norton Linear Actuator, 450 lbf, 115V AC LS25-1B5TN-08 - main

Linear Actuator, 450 lbf, 115V AC

  • Mfr # LS25-1B5TN-08

  • Zoro # G909215298

product price: $1,265.99
/ea
Free Shipping & Returns

Key Features

Rated Load
450 lb
Stroke Length
8 in
Speed @ Rated Load
0.26 in/sec
Duty Cycle
17 %
Voltage
115V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LS25-1B5TN-08
Zoro #
G909215298
UPC #
-
Country of Origin
China

Dimensions

Stroke Length
8 in
Retracted Length
15.4 in
Overall Width
3.35 in
Overall Height
5.99 in

Details

Item
Linear Actuator
Rated Load
450 lb
Speed @ Rated Load
0.26 in/sec
Duty Cycle
17 %
Voltage
115V AC
Full Load Amps
1.4 A
Capacitor Required
Yes
Housing Material
Die Cast Aluminum
Nut Material
Plastic
Drive System Type
Acme Screw
Max. Ambient Temp.
43.3 Degrees C/110 Degrees F
Standards
CE Listed, UL Listed
Limit Switch Type
Adjustable
Screw Type
Acme
Capacitor Included
Yes
Motor Type
Onboard Capacitor
Includes Capacitor
Capacitor Included
Full Load Current
1.4 A
Operating Temperature - Maximum
110 Degrees F
Speed at Full Load
0.26 in/sec
Load Capacity
450 lbf
System of Measurement
Inch, Metric
Limit Switch Setting
Adjustable
Series
LS
Includes Thermal Protection
Thermal Protection Included
Number of Wire Leads
4

Description

Linear Actuator, Motor Type Onboard Capacitor, Voltage 115V AC, Nut Material Plastic, Load Capacity 450 lbf, Stroke Length 8 in, Speed at Full Load 0.26 in/sec, Duty Cycle 17 Percent, Full Load Current 1.4 A, Retracted Length 15.4 in, Includes Capacitor Capacitor Included, Drive System Type Acme Screw, Housing Material Die Cast Aluminum, Limit Switch Setting Adjustable, Operating Temperature - Maximum 110 Degrees F, Standards CE Listed, UL Listed
