  11. 800 lbs. Spur Gear Hand Winch with Brake
Shop All Manual Winches
Dutton-Lainson

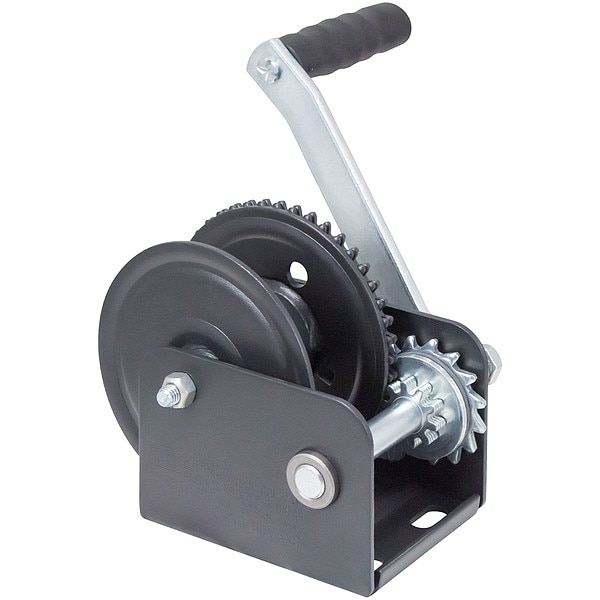

800 lbs. Spur Gear Hand Winch with Brake

product price: $76.19
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Application For Pulling
  • Gear Type Spur
  • Frame Color Bronze
  • Drum Capacity for 1/8 In. Cable 147 ft
  • Drum Capacity for 7/32 In. Cable 50 ft
See all product information

Product Information

Dimensions

Overall Height 5 1/2 in
Overall Length 6 11/16 in
Handle Length 7 in
Manufacturers Warranty Length 5 yr
Overall Width 6 1/4 in
Maximum Line Diameter 3/16 in
Mfr. Warranty Length 5 yr Limited
Maximum Line Length 67 ft
Drum Capacity per Line Dia. 147 ft per 1/8 in, 50 ft per 7/32 in, 67 ft per 3/6 in

Details

Application For Pulling
Gear Type Spur
Frame Color Bronze
Drum Capacity for 1/8 In. Cable 147 ft
Drum Capacity for 7/32 In. Cable 50 ft
Includes Handle with Molded Hand Grip
Brake Included Yes
Gear Ratio 4.4:1
Item Hand Winch
Drum Capacity for 2 In. Strap 21 ft
1st Layer Load Capacity 800 lb
Frame Finish Powder Coated
Winch Gear Type Spur
Winch Type Lifting
Frame Material Steel
Winch Gear Ratio 4.4:1
Standards ASAE S361.3
Drum Capacity for 3/16 In. Cable 67 ft
Color Black
Finish Metallic Copper Bronze Powdercoated Reel and Base, Zinc TUFFPLATE Components
Clutch Type No Clutch
Fully Wound Load Capacity 800 lb
Operation Lifting, Pulling
Handle Mount Location Side
Handle Attachment Type Permanent
Maximum Lifting Capacity 800 lb
Body Finish Powder Coated
Includes Brake Brake Included
Body Material Steel
Control Type Manual Handle
Body Type Open
Compatible Line Steel Cable
Number of Gear Settings 1

Description

Hand Winch, 1st Layer Load Capacity 800 lb, Clutch Type No Clutch, Fully Wound Load Capacity 800 lb, Gear Ratio 4.4:1, Gear Type Spur, Maximum Line Length 67 ft, Number of Gear Settings 1, Operation Lifting, Pulling, Body Material Steel, Body Type Open, Color Black, Compatible Line Steel Cable, Drum Capacity per Line Diameter 147 ft per 1/8 in, 50 ft per 7/32 in, 67 ft per 3/6 in, Drum Capacity per Strap Width Not Applicable, Handle Attachment Type Permanent, Handle Mount Location Side
