Shop All Manual Winches
Dutton-Lainson

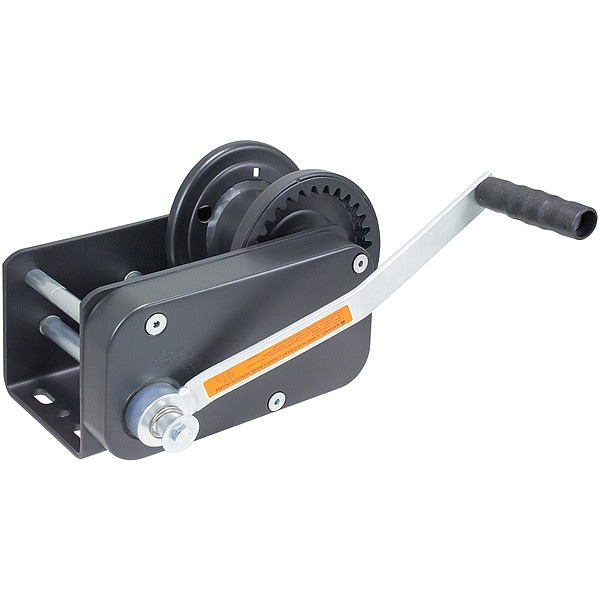

Heavy-Duty Brake Winch, Spur Gear, 3500 lb

original price: $385.36
30% off
new price: $266.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Drum Capacity for 7/32 In. Cable 92 pies
  • Gear Type Spur
  • Winch Gear Ratio 18.7:1
  • 1st Layer Load Capacity 3,500 lb
  • Overall Length 11 1/2 in
See all product information

Product Information

Dimensions

Overall Length 11 1/2 in
Overall Height 7 5/16 in
Handle Length 12 in
Overall Width 9 19/32 in
Manufacturers Warranty Length 5 yr
Mfr. Warranty Length 5 yr Limited
Maximum Line Length 32 ft
Maximum Line Diameter 3/8 in
Drum Capacity per Line Dia. 44 ft per 5/16 in, 66 ft per 1/4 in, 92 ft per 7/32 in

Details

Drum Capacity for 7/32 In. Cable 92 pies
Gear Type Spur
Winch Gear Ratio 18.7:1
1st Layer Load Capacity 3,500 lb
Frame Material Steel
Includes Handle with Molded Hand Grip
Brake Included Yes
Item Hand Winch
Winch Type Lifting
Gear Ratio 18.7:1
Frame Finish Zinc Plated
Frame Color Silver/Black
Application For Vertical Lifting
Standards ASAE S361.3
Drum Capacity for 1/4 In. Cable 66 ft
Winch Gear Type Spur
Drum Capacity for 5/16 In. Cable 44 ft
Clutch Type No Clutch
Handle Mount Location Side
Number of Gear Settings 1
Fully Wound Load Capacity 3,500 lb
Body Material Steel
Operation Lifting, Pulling
Color Black, Silver
Control Type Manual Handle
Body Type Enclosed Gears
Body Finish Zinc Plated
Handle Attachment Type Permanent
Includes Brake Brake Included
Maximum Lifting Capacity 3,500 lb
Compatible Line Steel Cable

Description

Hand Winch, 1st Layer Load Capacity 3,500 lb, Clutch Type No Clutch, Fully Wound Load Capacity 3,500 lb, Gear Ratio 18.7:1, Gear Type Spur, Maximum Line Length 32 ft, Number of Gear Settings 1, Operation Lifting, Pulling, Body Material Steel, Body Type Enclosed Gears, Color Black, Silver, Compatible Line Steel Cable, Drum Capacity per Line Diameter 44 ft per 5/16 in, 66 ft per 1/4 in, 92 ft per 7/32 in, Drum Capacity per Strap Width Not Applicable, Handle Attachment Type Permanent
