  11. 1/16 DIN temperature/process controller, relay outputs 1 and 2.

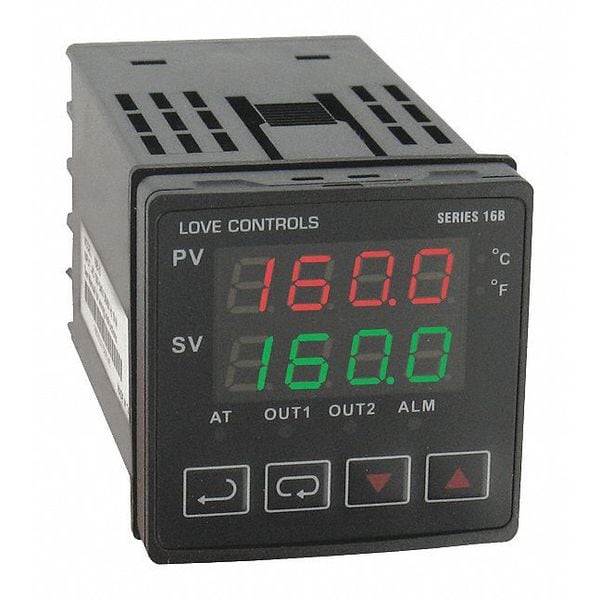

Dwyer Instruments 1/16 DIN temperature/process controller, relay outputs 1 and 2. 16B-33 - main

1/16 DIN temperature/process controller, relay outputs 1 and 2.

  • Mfr # 16B-33

  • Zoro # G0565120

product price: $174.99
/ea
Free Shipping & Returns

Key Features

Voltage
100/240V AC
Description/Special Features
(2) Four-Digit LED Displays
DIN Size
1/16
Input Voltage
100/240V AC
Switch Function
SPST
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16B-33
Zoro #
G0565120
UPC #
-
Country of Origin
China

Dimensions

DIN Size
1/16
Depth
3.16 in
Width
1.89 in
Overall Width
1 7/8 in

Details

Item
Temperature Controller
Voltage
100/240V AC
Description/Special Features
(2) Four-Digit LED Displays
Input Voltage
100/240V AC
Switch Function
SPST
Output
Relay
Temp. Range
32 Degrees to 122 Degrees F
Control Mode
Manual, On/Off Action, PID
Series
16B
Setting Accuracy
+/- 0.25% of Span, +/- 1 Digit
Standards
CE, cUL, RoHS, UL
Power Consumption
5 VA
Accuracy
+/-0.25% of Span; +/-1 Digit
Control Output Ratings
Relay: SPST, 5 A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA.
Communication
RS-485 Modbus® A-5-11/RTU communication protocol.
Front Panel Rating
IP56.
Operating Temperature
32 to 122°F (0 to 50°C).
Display
Two 4-digit, 7 segment .25" H (6.35 mm) LED's. PV: red; SV: green.
Memory Backup
Nonvolatile memory.
Inputs
Thermocouple, RTD, DC voltages or DC current.
Agency Approvals
CE, cUL, UL.
Temperature - Maximum
122 Degrees F
Temperature - Minimum
32 Degrees F
Product Type
Temperature Controller

Description

Temperature Controller, DIN Size 1/16, Input Voltage 100/240V AC, Switch Function SPST, Output Relay, Temp. Range 32 Degrees to 122 Degrees F, Control Mode Manual, On/Off Action, PID, Width 1.89 in, Depth 3.16 in, (2) Four-Digit LED Displays, Setting Accuracy +/- 0.25 Percent of Span, +/- 1 Digit, Power Consumption 5 VA, Standards CE, cUL, RoHS, UL, Series 16B
