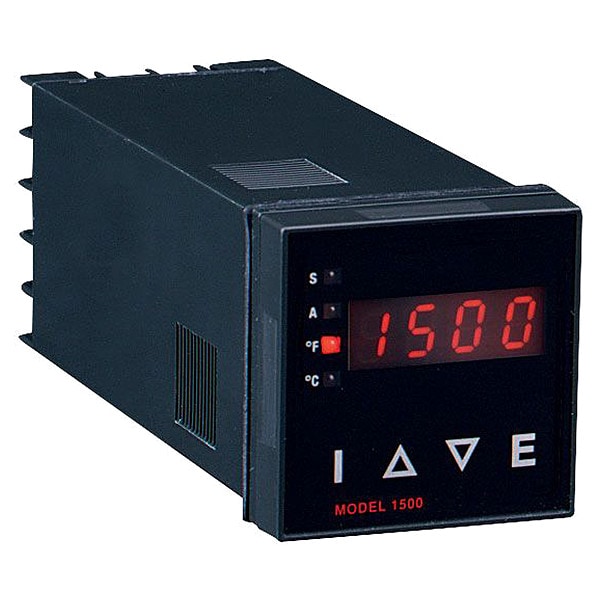

Temperature controller, thermocouple input, relay output, with alarm.

  • Mfr # 15113

  • Zoro # G210070395

product price:
$
883.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Sensor Type
J, K, T, Thermocouple
Description/Special Features
Degrees F or Degrees C LED Indicators, 4 Digit, 7 Segment 0.3 in High LED Display, Corrosion Resistant Front Panel, Set Point and Alarm Status LED Indicators, Waterproof
Voltage
100-240V AC
DIN Size
1/16
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
15113
Zoro #
G210070395
UPC #
-
Country of Origin
United States

Dimensions

DIN Size
1/16
Length
48 mm
Depth
128.1 mm
Width
48 mm
Overall Width
1 7/8 in
Overall Length
1 7/8 in
Wire Rope Length
48 mm

Details

Item
Temperature Controller
Digital/Analog
Digital
Sensor Type
J, K, T, Thermocouple
Description/Special Features
Degrees F or Degrees C LED Indicators, 4 Digit, 7 Segment 0.3 in High LED Display, Corrosion Resistant Front Panel, Set Point and Alarm Status LED Indicators, Waterproof
Voltage
100-240V AC
Input Voltage
100 to 240V AC
Switch Function
SPST, 3 A @ 250V AC Resistive 1.5 A Inductive
Output
Relay
Temp. Range
14 Degrees to 131 Degrees F
Control Mode
Manual PID or Automatic Self-Tune PID Control, On/Off Action, P, PI
Amps
1.5A, 3A
Standards
cUL, UL
Alarms
Relay, 3A, SPST
Power Consumption
5 VA
Series
1500
Accuracy
+/-0.25% of Span; +/-1 Digit
Display
4 digit, 7 segment 0.3" high LED display; Set Point and Alarm status LED indicators; °F or °C LED indicators.
Front Panel Rating
NEMA 4X (IP65).
Agency Approvals
cUL, UL.
Inputs
Thermocouple (J type stocked), field selectable K, T, E, or N type; RTD (100Ω DIN).
Current
20 mA
Product Type
Temperature Controller
Temperature - Minimum
14 Degrees F
Display Type
Digital
Temperature - Maximum
131 Degrees F
Operating Environment
Indoor
Fahrenheit Temperature - Minimum
14 Degrees F
Celsius Temperature - Minimum
-999 Degrees C
Parameters Measured
Temperature Degrees C, Temperature Degrees F
Fahrenheit Temperature - Maximum
131 Degrees F
Controller Options
SPDT, SPST
Display Units
Celsius, Fahrenheit
Celsius Temperature - Maximum
9,999 Degrees C

Description

Temperature Controller, Digital, J, K, T, Thermocouple Sensor Type, DIN Size 1/16, Input Voltage 100 to 240V AC, Switch Function SPST, 3 A @ 250V AC Resistive 1.5 A Inductive, Output Relay, Temp. Range 14 Degrees to 131 Degrees F, Control Mode Manual PID or Automatic Self-Tune PID Control, On/Off Action, P, PI, 1.5A, 3A Amps, Length 48 mm, Width 48 mm, Depth 128.1 mm
