Shop DWYER INSTRUMENTS

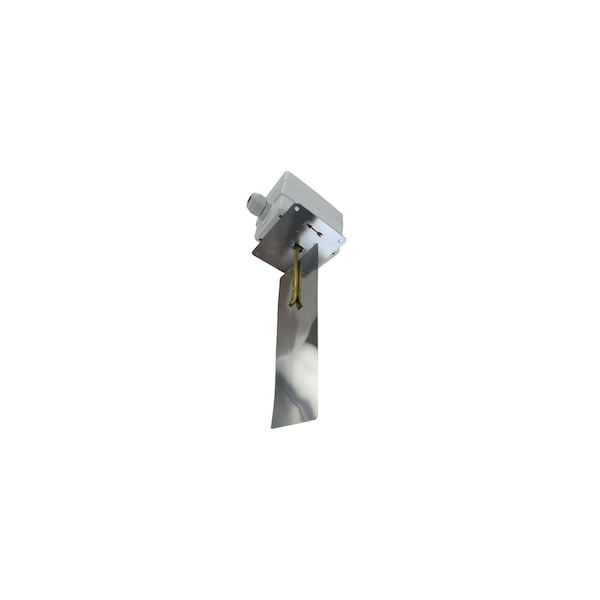

Air Flow Switch, 250V AC, 1,800fpm, 15A, ABS

  • Mfr # AAFS
  • Zoro # G507149162
product price:
$
110.99
/ea
Free Shipping & Returns

Key Features

Features
Adjustable air flow sensitivity from 200 to 1800 FPM; High current (15 A) rated SPDT contact; IP65 enclosure rating
Housing
ABS.
Service
Air and compatible gas.
Process Connection
Flange.
Wetted Materials
Vane: SS; Lever: Brass; Base: Galvanized steel.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AAFS
Zoro #
G507149162
UPC #
-
Country of Origin
China

Details

Features
Adjustable air flow sensitivity from 200 to 1800 FPM; High current (15 A) rated SPDT contact; IP65 enclosure rating
Housing
ABS.
Service
Air and compatible gas.
Process Connection
Flange.
Wetted Materials
Vane: SS; Lever: Brass; Base: Galvanized steel.
Humidity Limits
10 to 90%, noncondensing.
Temperature Limits
Ambient: -40 to 180°F (-40 to 85°C); Process: -14 to 185°F (-10 to 85°C).
Mounting Orientation
Horizontal duct flow.
Switch Type
SPDT.
Electrical Rating
15(8) A @ 250 VAC.
Enclosure Rating
IP65.

Description

Air Flow Switch, Contact Form SPDT, Input Voltage 250V AC, Full Load Current 15 A, Maximum Air Velocity 1,800 fpm, Minimum Actuation Air Velocity - Vertical Not Applicable, Minimum Actuation Air Velocity - Horizontal 200 fpm, Maximum Duct Air Temperature 180 Degrees F, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -14 Degrees F, Housing Material ABS, Application Air Flow Proving in HVAC Systems, Paddle Width 3 1/8 in, Mounting Orientation Horizontal
