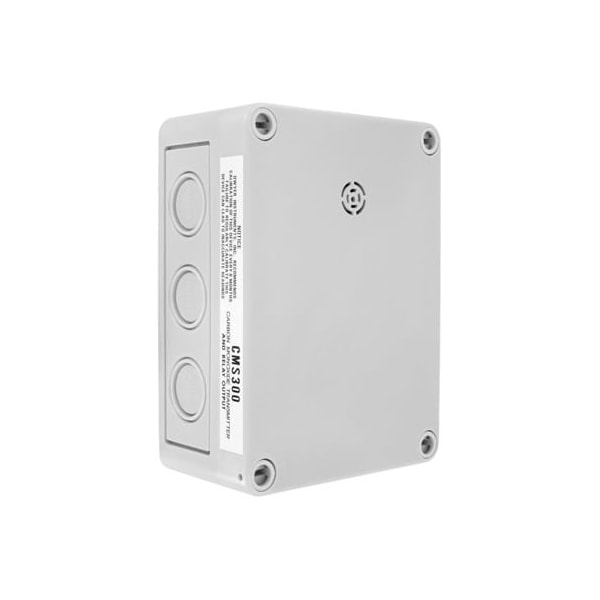

Carbon Monoxide Transmitter/Switch

  • Mfr # CMS300-FC

  • Zoro # G810044864


product price:  $239.99
/ea
Free Shipping & Returns

Key Features

Power Source
Hardwired
Overall Width
3.7 in
Overall Height
5.1 in
Maximum Operating Temperature
122 Degrees F
Includes
Factory Calibration Certificate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CMS300-FC
Zoro #
G810044864
UPC #
-
Country of Origin
United States

Dimensions

Overall Width
3.7 in
Overall Height
5.1 in
Manufacturer Warranty Length
5 yr
Overall Depth
2.23 in

Details

Item
Carbon Monoxide Transmitter/Switch
Power Source
Hardwired
Maximum Operating Temperature
122 Degrees F
Includes
Factory Calibration Certificate
Standards
CE Compliant, RoHS Compliant
Voltage
12 to 40V DC, 15 to 32V AC
IP Rating
IP64
Market
Commercial
Number of Gases Detected
1
For Environment
Garage or Loading Dock Ventilation, Mechanical Room Monitoring, Vehicle Maintenance Facilities
Interchangeable Sensors
Yes
Measurement Range
Carbon Monoxide (0 to 300 ppm)
Operating Temperature - Minimum
-4 Degrees F
Coverage Area
7,500 sq ft
Product Type
Detector Transmitter
Mount Type
Screws
Detection Concentration - Minimum
0 ppm
Resolution
1 ppm
Display Type
None
Sensor Type
Electrochemical
Output Current
4 to 20 mA
Gas Detected
Carbon Monoxide
Detection Concentration - Maximum
300 ppm
Operating Temperature - Maximum
122 Degrees F
Sensor Life
5 yr
Chemical Formula
CO
Measures Temperature
Not Temperature Measuring
Number of Relays
1
Alert Type
Sound
Operating Voltage
12 to 40V DC, 15 to 32V AC

Description

Carbon Monoxide Transmitter/Switch, Gas Detected Carbon Monoxide, Standards CE Compliant, RoHS Compliant, Includes Factory Calibration Certificate, Product Type Detector Transmitter, Mounting Location Wall, Number of Relays 1, Sensor Type Electrochemical, Display Type None, Detection Concentration - Minimum 0 ppm, Detection Concentration - Maximum 300 ppm, Measures Temperature Not Temperature Measuring, Operating Temperature - Minimum -4 Degrees F, Operating Temperature - Maximum 122 Degrees F
