Shop DWYER INSTRUMENTS

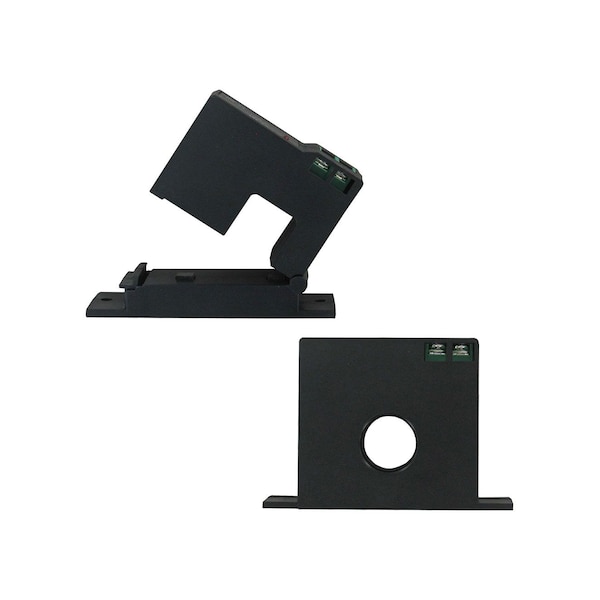

Current transformer, 10/20/50 A input, 4-20 mA output, solid core.

  • Mfr # CCT40-200
  • Zoro # G407143994
product price:
$
51.49
/ea

Key Features

Item - Transformer
Solid Core Current Transformer
Overall Depth
3.9 in
Enclosure Rating
UL, 94 V-O flammability rated, ABS plastic housing.
Features
Integral mounting flange for quick installation; Solid core or split core configurations; Jumper selectable range
Temperature Limits
-22 to 158ºF (-30 to 70ºC).
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CCT40-200
Zoro #
G407143994
UPC #
-
Country of Origin
China

Dimensions

Overall Depth
3.9 in

Details

Item - Transformer
Solid Core Current Transformer
Enclosure Rating
UL, 94 V-O flammability rated, ABS plastic housing.
Features
Integral mounting flange for quick installation; Solid core or split core configurations; Jumper selectable range
Temperature Limits
-22 to 158ºF (-30 to 70ºC).
Power Requirements
Self powered or 15 to 42 VDC loop powered (depending on model).
Isolation Voltage
2000 V.
Frequency
10 to 400 Hz.
Amperage Range
Field selectable; up to 200 A (depending on model).
Accuracy
1%.
Humidity Limits
0 to 95% (non-condensing).
Response Time
250 ms to 90%.
Approvals
CE, cUL, UL.
Output
0 to 5 V, 0 to 10 V, or 4 to 20 mA (depending on model).

Description

Current transformer, 10/20/50 A input, 4-20 mA output, solid core.
