Shop DWYER INSTRUMENTS

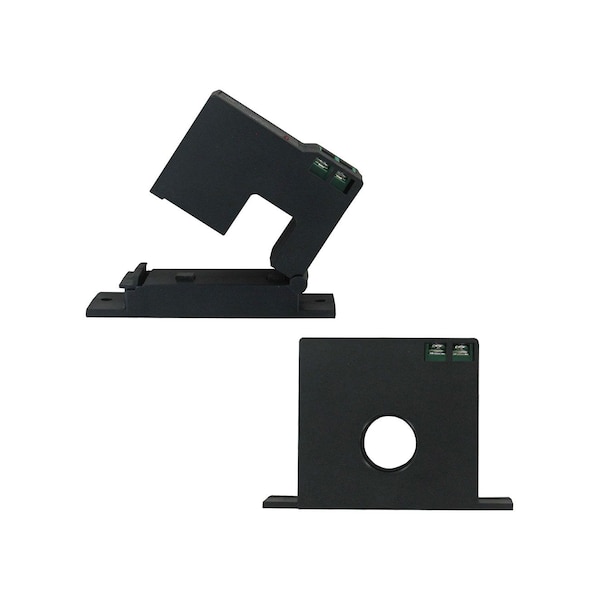

Current transformer, 10/20/50 A input, 4-20 mA output, split core.

  • Mfr # CCT40-100
  • Zoro # G207143996
product price:
$
60.15
/ea

Key Features

Item - Transformer
Split Core Current Transformer
Overall Depth
7 in
Features
Integral mounting flange for quick installation; Solid core or split core configurations; Jumper selectable range
Enclosure Rating
UL, 94 V-O flammability rated, ABS plastic housing.
Power Requirements
Self powered or 15 to 42 VDC loop powered (depending on model).
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CCT40-100
Zoro #
G207143996
UPC #
-
Country of Origin
China
Item - Transformer
Split Core Current Transformer
Features
Integral mounting flange for quick installation; Solid core or split core configurations; Jumper selectable range
Enclosure Rating
UL, 94 V-O flammability rated, ABS plastic housing.
Power Requirements
Self powered or 15 to 42 VDC loop powered (depending on model).
Accuracy
1%.
Approvals
CE, cUL, UL.
Frequency
10 to 400 Hz.
Amperage Range
Field selectable; up to 200 A (depending on model).
Temperature Limits
-22 to 158ºF (-30 to 70ºC).
Response Time
250 ms to 90%.
Humidity Limits
0 to 95% (non-condensing).
Output
0 to 5 V, 0 to 10 V, or 4 to 20 mA (depending on model).
Isolation Voltage
2000 V.

Description

Current transformer, 10/20/50 A input, 4-20 mA output, split core.
