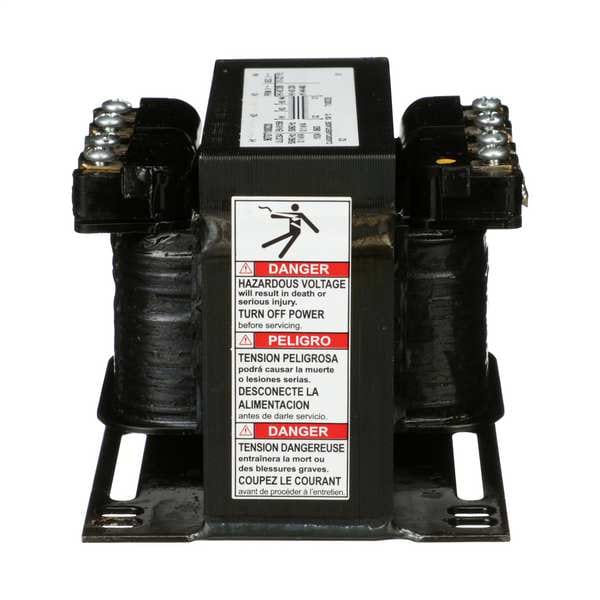

Control Transformer, 100 VA, Not Rated, 120V AC, 208/240/480V AC
- Mfr # 9070T100D20
- Zoro # G2818347
product price:Â
$
212.99
/ea
Free Shipping & Returns
Key Features
Input Voltage - Transformer
208/240/480V AC
Output Voltage
115V AC
Power Rating
100 VA
Phase
Single
Mounting - Transformer
Foot
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 9070T100D20
- Zoro #
- G2818347
- UPC #
- 785901905059
- Country of Origin
- Korea, Republic of
- Item
- Control Transformer
- Input Voltage - Transformer
- 208/240/480V AC
- Output Voltage
- 115V AC
- Power Rating
- 100 VA
- Phase
- Single
- Mounting - Transformer
- Foot
- Hz - Electrical
- 50/60 Hz
- NEMA Enclosure Rating
- Not Rated
- Temperature Rise
- 55 Degrees C
- Enclosure Style - Transformer
- Open
- Protective Device
- None
- Standards
- CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
- Fused
- No
- Enclosure Finish
- Epoxy Resin Varnish
- Green Environmental Attribute
- Mercury Free; Pvc Free
- Includes
- 24 in Pre-Wired Primary and Secondary Leads
- Secondary Connection
- Screw clamp terminals
- Primary Connection
- Screw clamp terminals
- Insulation Max. Temp.
- 105 °C
- Enclosure Type
- Open
- Winding Material - Transformer
- Copper
- Input Voltage
- 208V AC, 230V AC, 460V AC
- Frequency
- 50/60 Hz
- Enclosure Style
- Open
Description
Control Transformer, Input Voltage - Transformer 208V AC, 240V AC, 480V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 100 VA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 55 Degrees C, Enclosure Finish Epoxy Resin Varnish
