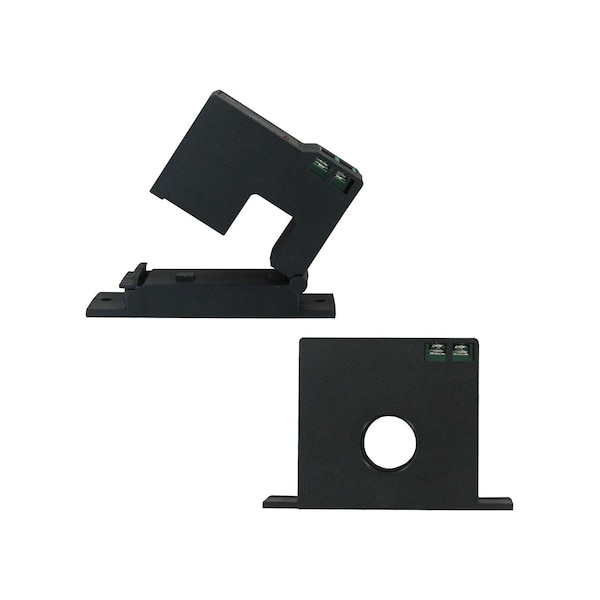

Current transformer, 10/20/50 A input, 4-20 RMS output, solid core.
Mfr # CCT60-200
Zoro # G207143965
product price:Â
$
71.35
/ea
Key Features
Item - Transformer
Solid Core Current Transformer
Primary Range
0 to 200A
Overall Depth
4.9 in
Features
Integral mounting flange for quick installation; Solid core or split core configurations; Jumper selectable range; True RMS
Enclosure Rating
UL, 94 V-O flammability rated, ABS plastic housing.
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CCT60-200
- Zoro #
- G207143965
- UPC #
- -
- Country of Origin
- China
Dimensions
- Overall Depth
- 4.9 in
Details
- Item - Transformer
- Solid Core Current Transformer
- Primary Range
- 0 to 200A
- Features
- Integral mounting flange for quick installation; Solid core or split core configurations; Jumper selectable range; True RMS
- Enclosure Rating
- UL, 94 V-O flammability rated, ABS plastic housing.
- Humidity Limits
- 0 to 95% (non-condensing).
- Output
- 4 to 20 mA, true RMS.
- Approvals
- CE, cUL, UL.
- Response Time
- 250 ms to 90%.
- Power Requirements
- 24 VDC nominal.
- Frequency
- 10 to 400 Hz.
- Accuracy
- 1%.
- Temperature Limits
- -22 to 158ºF (-30 to 70ºC).
- Isolation Voltage
- 2000 V.
Description
Current transformer, 10/20/50 A input, 4-20 RMS output, solid core.
