Shop DWYER INSTRUMENTS

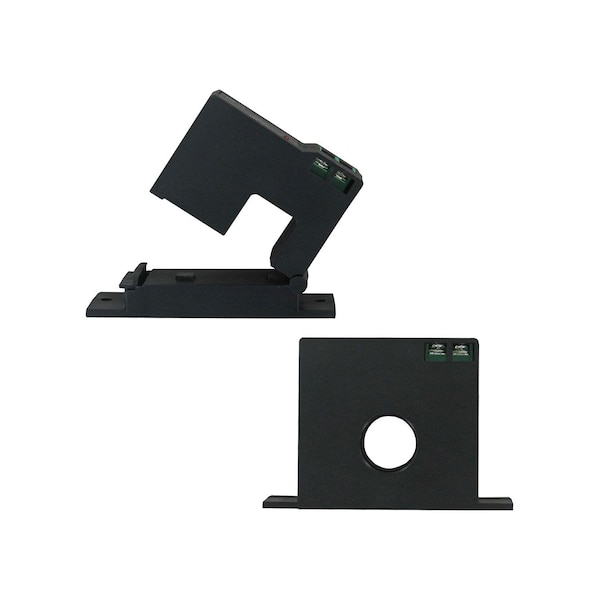

Current transformer, 100/150/200 A input, 4-20 RMS output, split core.

  • Mfr # CCT70-100

  • Zoro # G007143967

product price:
$
88.45
/ea

Key Features

Item - Transformer
Split Core Current Transformer
Overall Depth
4.8 in
Enclosure Rating
UL, 94 V-O flammability rated, ABS plastic housing.
Features
Integral mounting flange for quick installation; Solid core or split core configurations; Jumper selectable range; True RMS
Accuracy
1%.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CCT70-100
Zoro #
G007143967
UPC #
-
Country of Origin
China
Item - Transformer
Split Core Current Transformer
Enclosure Rating
UL, 94 V-O flammability rated, ABS plastic housing.
Features
Integral mounting flange for quick installation; Solid core or split core configurations; Jumper selectable range; True RMS
Accuracy
1%.
Isolation Voltage
2000 V.
Humidity Limits
0 to 95% (non-condensing).
Frequency
10 to 400 Hz.
Temperature Limits
-22 to 158ºF (-30 to 70ºC).
Approvals
CE, cUL, UL.
Output
4 to 20 mA, true RMS.
Response Time
250 ms to 90%.
Amperage Range
Up to 200 A (depending on model).
Power Requirements
24 VDC nominal.

Description

Current transformer, 100/150/200 A input, 4-20 RMS output, split core.
