  5. Differential pressure gage, range 15-0-15" w.c., minor divisions 1.0.

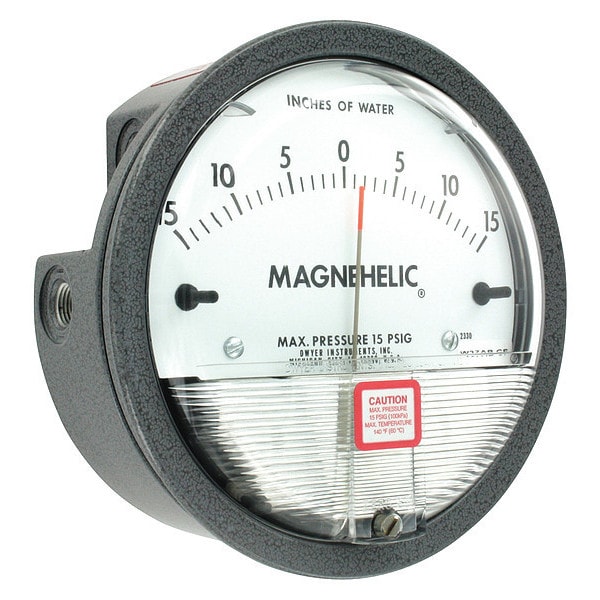

Dwyer Instruments Differential pressure gage, range 15-0-15" w.c., minor divisions 1.0. 2330 - main

Differential pressure gage, range 15-0-15" w.c., minor divisions 1.0.

  • Mfr # 2330

  • Zoro # G2449605

product price:  $97.79
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-2.00%
Process Connection Type
NPT
Process Connection Size
1/8 in
Series
2000
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2330
Zoro #
G2449605
UPC #
094700786302
Country of Origin
United States

Dimensions

Process Connection Size
1/8 in
Nominal Dial Size
4 in
Manufacturers Warranty Length
1 yr
Gauge Nominal Dial Size
3 1/2 in
Differential Gauge Connection Size
1/8 in
Bolt Circle Diameter
4.125 in
Case Depth
1.687 in
Case Diameter
4 3/4 in
Manufacturer Warranty Length
5 yr

Details

Item
Differential Pressure Gauge
Accuracy
+/-2.00%
Process Connection Type
NPT
Series
2000
Process Connection Gender
Female
Application
Flow Measurement, Vacuum Applications, Clean Rooms, HVAC/R, Fan Pressure Indication, Filtration Monitoring
Process Connection Location
Back, Side
Housing Material
Die Cast Aluminum
Pressure Range
15 to 0 to 15 in wc
Sensor Type
Diaphragm
Rated Total Pressure
-20 in Hg to 15 psi
Gauge Operating Temp. Range
20 Degrees to 140 Degrees F
Gauge Accuracy
+/-2%
Body Material
Die Cast Aluminum
Differential Gauge Connection Type
FNPT
Differential Pressure Gauge Type
Differential Pressure Gauge
Gauge Connection Location
Back and Side
Scale Type
Pressure
Dial Material
Die Cast Aluminum
Differential Pressure Range Units
in wc
Gauge Primary Range Smallest Graduation
1
Basic Gauge Case Material
Metal
Includes
Instructions, Three Mounting Adapters with Screws, Two 1/8 in NPT Plugs, Two 1/8 in NPT to 3/16 in ID Rubber Tubing Adapters
Differential Pressure Range
15 in to 0 to 15 in wc
Differential Pressure Range Value
-15 to 0 to 15
Case Material
Aluminum
Case Color
Gray
Standards
EU Directive 2011/65/EU (RoHS II)
Hazardous Location Rating
Not Rated
Over-Pressure Limit
1.72 bar
Dial Color
White
Pointer Material
Aluminum
Non-Sparking
No
Pressure Gauge Type
Differential Pressure Gauge
Panel-Mountable
Yes
Includes Mounting Hardware
Yes
IP/NEMA Rating
IP67
Compatible Process Media
Cleanroom
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Mounting Hardware Included
Flange
Case Finish
Die Cast
Includes Calibration Certificate
No
Includes Vent Plug
Yes
Pointer Characteristics
Red Tipped Pointer of Heat Treated Aluminum Tubing is easy to see
Blowout Safety Back
Yes
Removable Bezel
No
Accuracy Details
+/-2% (-HA model +/-1) of FS, +/-3% (-HA +/-1.5%) on -0, -100PA, -125PA, -10MM, +/-4% (-HA +/-2%) on -00, -60PA, -6MM ranges throughout range at 70 Degrees F (21.1 Degrees C).
Mounting Orientation
Upright Only
Adjustable Set Points
No
Dial Face Material
Plastic
Maximum Working Static Pressure
80 psig
Bezel Mounting Type
Flush
Ambient Operating Temperature Range
20 Degrees to 140 Degrees F
Gauge Case Material
Aluminum
Case Shape
Round
Case Construction
Corrosion Resistant
Sensor Material
Silicone Rubber
Bezel Material
Die Cast Aluminum
Pressure Measurement - Maximum
15 in wc
Operating Temperature - Minimum
20 Degrees F
Operating Temperature - Maximum
140 Degrees F
Pressure Measurement - Minimum
-15 in wc
Number of Switches
0
IP Rating
IP67
Working Static Pressure - Maximum
80 psig

Description

Differential Pressure Gauge, Pressure Range 15.0-0-15.0 Inches WC, Pressure Range Minor Divisions 1.00, Rated Total Pressure -20 Inches Hg to 15 PSIG, Differential Pressure
