  9. Differential Pressure Switch 015-055
Shop All Differential Pressure Gauges
Dwyer Instruments

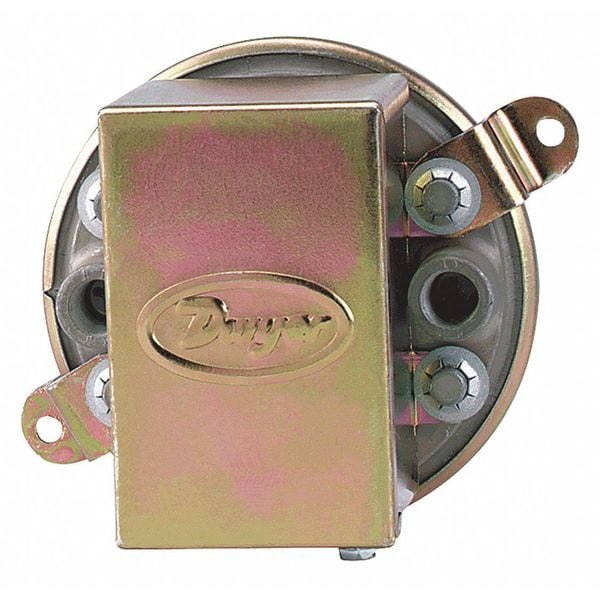

Differential Pressure Switch 015-055

product price: $84.69
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Range 15 to 55 in wc
  • Standards CE, CSA, FM, RoHS, UL Listed
  • Product Type Differential Pressure Switch
  • Minimum Operating Temperature -30 Degrees F
  • Overall Diameter 3 1/2 in
See all product information

Product Information

Dimensions

Overall Diameter 3 1/2 in
Overall Depth 2 3/8 in
Mounting Hole Diameter 3/16 in
Sample Line Connection Size 1/8 in

Details

Range 15 to 55 in wc
Item Differential Pressure Switch
Standards CE, CSA, FM, RoHS, UL Listed
Product Type Differential Pressure Switch
Minimum Operating Temperature -30 Degrees F
Pressure Type Differential
Sample Line Connector Type NPT
Electrical Rating 1/4 HP @ 250 V AC, 60 Hz, 1/8 HP @ 125 V AC, 15 A @ 120 to 480 V AC, 60 Hz Resistive, Derate to 10 A for Operation at High Cycle Rates
Contact Form SPDT
Mounting Hole Center to Center Distance 4 3/16 in
Maximum Operating Temperature 180 Degrees F
Pressure Setpoint Type Adjustable
Minimum Differential Pressure Setting 0.15 in wc
Mounting Orientation Vertical
Electrical Connection Type Screw Terminals
Application Frost and Ice Detection, Clogged or Dirty Filter Detection, Air Flow Control
Maximum Differential Pressure Setting 0.5 in wc
Weight 1 lb
Minimum Pressure Setting 0.15 in wc
Maximum Pressure Setting 0.5 in wc
Maximum Pressure Rating 45 in wc

Description

Differential Pressure Switch, Application Frost and Ice Detection, Clogged or Dirty Filter Detection, Air Flow Control, Contact Form SPDT, Electrical Connection Type Screw Terminals, Electrical Rating 1/4 HP @ 250 V AC, 60 Hz, 1/8 HP @ 125 V AC, 15 A @ 120 to 480 V AC, 60 Hz Resistive, Derate to 10 A for Operation at High Cycle Rates, Maximum Differential Pressure Setting 0.5 in wc, Maximum Operating Temperature 180 Degrees F, Maximum Pressure Rating 45 in wc, Maximum Pressure Setting 0.5 in wc
