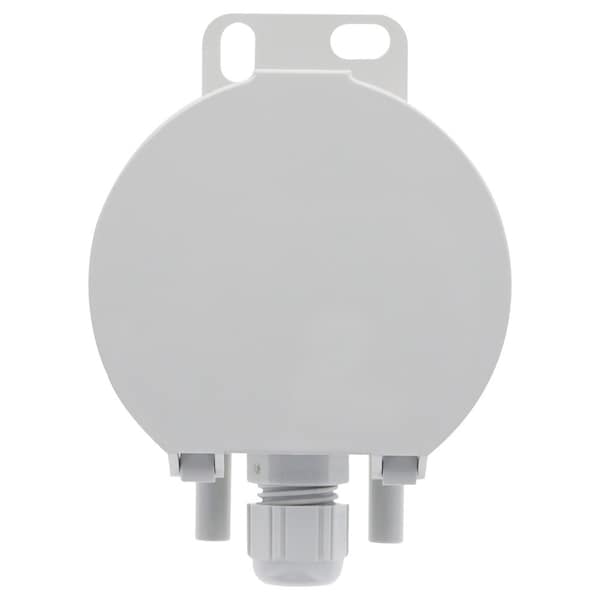

Differential pressure transmitter, 5000 Pa, 4-20mA output
- Mfr # 685-13
- Zoro # G207143743
product price:Â
$
105.99
/ea
Free Shipping & Returns
Key Features
Accuracy
± 0.5 %
Output
Current
Power Required
21 mA
Process Connection Type
Stem
Process Connection Size
6 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 685-13
- Zoro #
- G207143743
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Process Connection Size
- 6 mm
Details
- Accuracy
- ± 0.5 %
- Output
- Current
- Power Required
- 21 mA
- Process Connection Type
- Stem
- Application
- Clean Rooms, Filter Monitoring, Fluid Measurement and Control
- Operating Temp. - Transmitter
- -20°C to 70°C
- Standards
- CE, UKCA
- Loop Resistance
- 500 Ω max
- Enclosure Rating
- IP54
- Material of Construction
- ABS, Polyamide
- Source Voltage
- 18 to 30 Vdc
- Mounting
- Panel Mount
- Pressure Range
- 0 Pa to 5000 Pa
- Electrical Connections - Transmitter
- Cable Gland with Screw Terminal block
- Electrical Output
- 4 to 20 mA
- Response Time
- 1 s
- Measurement Pressure Type
- Differential
- Sensor Type
- Piezoresistive Pressure Sensor
- Relative Humidity
- 0 to 95% RH (non-condensing)
- Supply Power Type
- DC
- Media Compatibility
- Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases
- Number of Wires
- 2
- Long Term Stability
- ≤ ± 1% RSS/year
Description
Differential pressure transmitter, 5000 Pa, 4-20mA output
