Shop DWYER INSTRUMENTS

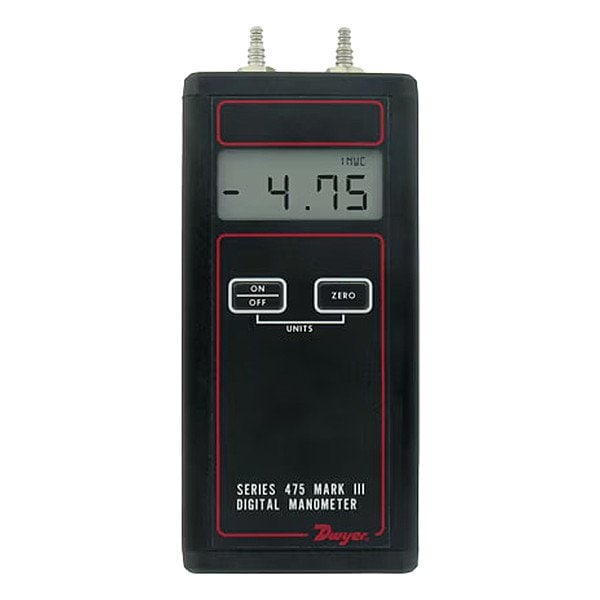

Digital Manometer, LCD, 5 psig, Barb

  • Mfr # 475-00-FM-NIST

  • Zoro # G916389104

product price:
$
583.99
/ea
Free Shipping & Returns

Key Features

Intrinsic Safety
Intrinsically Safe
Display Units
in wc, kPa, psi
Includes Data Hold
Data Hold
Pressure Type Measured
Differential, Gas
Process Connection Size
1/8 in, 3/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
475-00-FM-NIST
Zoro #
G916389104
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/8 in, 3/16 in
Battery Size
9V
For Tubing Diameter
1/8 in, 3/16 in

Details

Item
Digital Manometer
Intrinsic Safety
Intrinsically Safe
Display Units
in wc, kPa, psi
Includes Data Hold
Data Hold
Pressure Type Measured
Differential, Gas
Process Connection Material
Stainless Steel
Digital Display Type
LCD
Includes NIST-Traceable Calibration Certificate
NIST-Traceable Calibration Certificate Included
Number of Process Connections
2
Standards
CE, FM
Includes Batteries
Batteries Included
Includes Low Battery Indicator
Low Battery Indicator
Pressure Resolution
0.001 in wc
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D
Operating Pressure - Maximum
5 psig
Process Connection Type
Hose Barb
Operating Temperature - Maximum
140 Degrees F
Number of Digits
4
Series
475
Accuracy
+/-0.5% Full Scale from 60 to 78 Degrees F (15.6 to 25.6 Degrees C), +/-1.5% Full Scale from 32 to 60 Degrees F and 78 to 104 Degrees F (0 to 15.6 Degrees C and 25.6 to 40 Degrees C)
Pressure Measurement - Maximum
4 in wc
Pressure Measurement - Minimum
0 in wc
Operating Temperature - Minimum
0 Degrees F
Housing Material
Aluminum

Description

Digital Manometer, Accuracy +/-0.5 Percent Full Scale from 60 to 78 Degrees F (15.6 to 25.6 Degrees C), +/-1.5 Percent Full Scale from 32 to 60 Degrees F and 78 to 104 Degrees F (0 to 15.6 Degrees C and 25.6 to 40 Degrees C), Process Connection Size 1/8 in, 3/16 in, Process Connection Type Hose Barb, Series 475, Data Interface Not Applicable, Display Units in wc, kPa, psi, For Tubing Diameter 1/8 in, 3/16 in
