  9. Digital pressure gage w/ boot, range -15-0 psi with 4-digit display, +/-0.5% accuracy, battery powered.

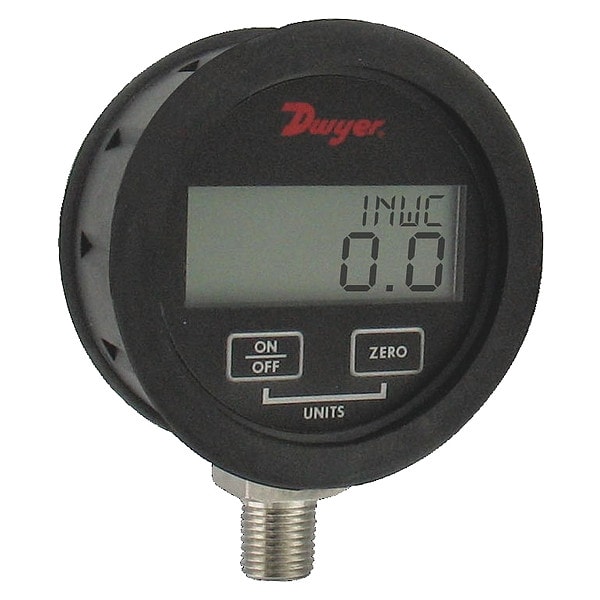

Dwyer Instruments Digital pressure gage w/ boot, range -15-0 psi with 4-digit display, +/-0.5% accuracy, battery powered. DPGWB-00 - main

Digital pressure gage w/ boot, range -15-0 psi with 4-digit display, +/-0.5% accuracy, battery powered.

  • Mfr # DPGWB-00

  • Zoro # G5165895

product price: $270.99
/ea
Free Shipping & Returns

Key Features

Gauge Application
For Liquids & Gases
Gauge Nominal Dial Size
3 in
Gauge Connection Type
MNPT
Gauge Connection Size
1/4 in
Gauge Connection Location
Bottom
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DPGWB-00
Zoro #
G5165895
UPC #
-
Country of Origin
United States

Dimensions

Gauge Nominal Dial Size
3 in
Gauge Connection Size
1/4 in
Manufacturers Warranty Length
1 yr
Manufacturer Warranty Length
1 yr
Process Connection Size
1/4 in
Case Diameter
3.093 in
Digit Height
0.43 in
Nominal Dial Size
3 in
Case Depth
1.781 in
Battery Size
9V

Details

Gauge Application
For Liquids & Gases
Gauge Connection Type
MNPT
Gauge Connection Location
Bottom
Gauge Primary Range Units
psi
Calibration Certificate
No
Memory Storage
No
Display Units
bar, in Hg, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psi
Display
LCD
Peak Hold
No
Digital Gauge Accuracy
+/-0.50% Full Scale
Item
Digital Process Vacuum Gauge
Number of Display Digits
4
Gauge Primary Range Values
-15 to 0
Resolution
Dependent on Range
Case Color
Black
Accuracy
+/-0.50%
Socket Material
Stainless Steel
Case Material
ABS Thermoplastic
Gauge Operating Temp. Range
30 Degrees to 120 Degrees F
Gauge Case Material
ABS
Range
-15 to 0 psi
Powered By
9V Battery
Features
Automatic Shutoff, Zero Adjustment
Digital Gauge Display Units
bar, in Hg, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psi
Includes
Alkaline Batteries
Series
DPGWB
Sensor Material
Silicone
Includes Batteries
Batteries Included
Display Screen Type
LCD
Process Connection Type
NPT
Case Shape
Round
Adjustable Set Points
No
Process Temperature Range
30 Degrees to 120 Degrees F
Panel-Mountable
No
Auto-Shutoff
Yes
Power Source
Battery
Pressure Range Type
Compound
Process Connection Gender
Male
Includes Calibration Certificate
No
Temperature Error
0.05% Degrees F
Primary Display Range
-30 to 0
Display Range
-1.013 to 0 bar, -1.033 to 0 kg/cm², -101.4 to 0 kpa, -1013 to 0 mbar, -1034 to 0 cm wc., -235.2 to 0 oz/in², -29.93 to 0 in Hg, -33.94 to 0 ft wc., -407.3 to 0 in wc., -761 to 0 mm Hg, 30 to 0 in Hg
Standards
CE Certified, RoHS
Process Connection Location
Bottom
Hazardous Location Rating
Not Rated
Backlit Screen
No
Over-Pressure Limit
105% of Full Scale
Low Battery Indicator
Yes
Languages
English
Includes Rubber Boot
Yes
Blowout Safety Back
No
Compatible Process Media
Liquids and Compatible Gases
Non-Sparking
No
Pressure Gauge Type
Process Pressure Gauge
Primary Display Units
in Hg
Display Resolution
0.01 psi
Application
Pressure Detection, OEM Applications, Process Industries
Weatherproof
No
Auto-Shutoff Time
20 min
Battery Type
9V Battery
Number of Digits
4
Includes Mounting Hardware
No
IP/NEMA Rating
Not Rated
Process Media Temperature - Maximum
120 Degrees F
Vacuum Measurement - Minimum
-30 in Hg
Pressure Measuring Units
bar, in Hg, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psi
Vacuum Measurement - Maximum
0 in Hg
Includes Low Battery Indicator
Low Battery Indicator
Process Media Temperature - Minimum
30 Degrees F

Description

Digital Process Vacuum Gauge, Accuracy +/-0.50 Percent, Gauge Case Material ABS, Nominal Dial Size 3 in, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Compatible Process Media Liquids and Compatible Gases, Sensor Material Silicone, Socket Material Stainless Steel, Process Connection Type NPT, Display Units bar, in Hg, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psi, Process Connection Gender Male, Battery Type 9V Battery, Process Connection Location Bottom
