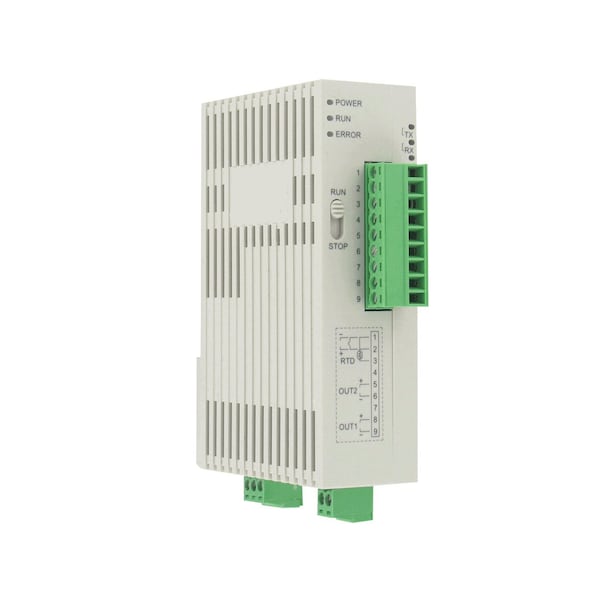

Digital Temperature Controller, 90.06mm L
- Mfr # SCD-2023
- Zoro # G407149187
product price:Â
$
136.99
/ea
Free Shipping & Returns
Key Features
Power Consumption
3 W.
Inputs
Thermocouple, RTD, DC linear voltage, and DC currents.
Control Output Ratings
Relay: 3 A @ 250 VAC resistive; Voltage pulse: 12 VDC, max. output current: 40 mA; Current: 4 to 20 mA output; Linear voltage: 0 to 10 VDC.
Operating Temperature
32 to 122ºF (0 to 50ºC).
Memory Backup
Non-volatile.
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- SCD-2023
- Zoro #
- G407149187
- UPC #
- -
- Country of Origin
- China
- Power Consumption
- 3 W.
- Inputs
- Thermocouple, RTD, DC linear voltage, and DC currents.
- Control Output Ratings
- Relay: 3 A @ 250 VAC resistive; Voltage pulse: 12 VDC, max. output current: 40 mA; Current: 4 to 20 mA output; Linear voltage: 0 to 10 VDC.
- Operating Temperature
- 32 to 122ºF (0 to 50ºC).
- Memory Backup
- Non-volatile.
- Agency Approvals
- CE, cULus.
- Communication
- RS-485 Modbus® A-5-11/RTU communication protocol.
Description
Temperature Controller, Digital, B, E, J, K, L, N, Platinum RTD, R, S, T, Thermocouple, TXK, U Sensor Type, DIN Size Not Applicable, Input Voltage 24V DC, Switch Function 12V DC (Output 1), 3 A @ 250V AC Resistive (Output 2), Output Relay, Voltage Pulse, Temp. Range 32 Degrees to 122 Degrees F, Control Mode PID, 3A, 40mA Amps, Length 90.06 mm, Width 25.4 mm, Depth 57.15 mm
