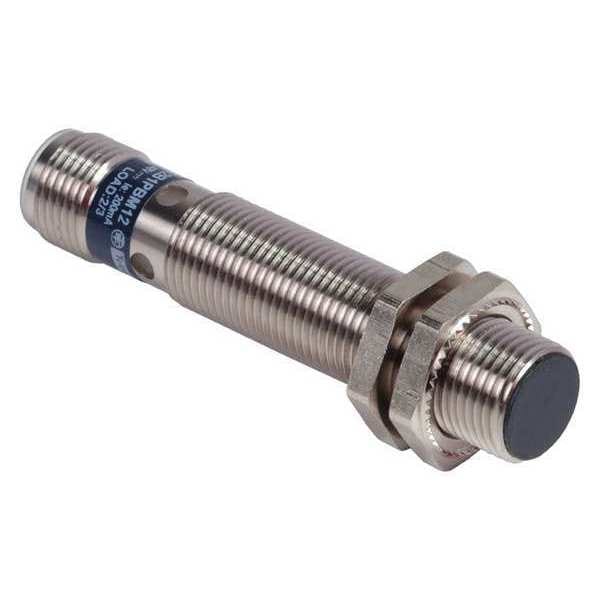

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded XS612B1PBM12 - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded

  • Mfr # XS612B1PBM12

  • Zoro # G7036267

product price:  $89.15
/ea
Free Shipping & Returns

Key Features

Style
Cylindrical, Inductive
Measurement Range
2.5 to 4 mm
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
12 to 48V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XS612B1PBM12
Zoro #
G7036267
UPC #
785901505280
Country of Origin
Multiple

Dimensions

Overall Diameter
12 mm
Length
62 mm
Overall Height
62 mm

Details

Item
Proximity Sensor
Style
Cylindrical, Inductive
Measurement Range
2.5 to 4 mm
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
12 to 48V DC
Electrical Connection
M12
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Shielded
Sensing Distance - Maximum
4 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
12-48V DC
Output Circuit Contact Form
NC
Standards
CE, CSA, E2, RoHS, UL Listed
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
2,500 Hz
IP Rating
IP67, IP69K
Max. Current Load
200mA
Operating Temp. Range
-13 Degrees to 158 Degrees F
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Maximum Voltage Drop
<2 V closed)
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Differential Travel
1...15% of Sr
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Supply Voltage Limits
10-58 V DC
Body Type
fixed
Maximum Delay Response
0.2 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Application
mobile equipment; general purpose
Storage Temp. Range
-40-85 °C
Maximum Delay Recovery
0.2 ms
Maximum Delay First Up
10 ms
Series
XS6
Switching Frequency
2,500 Hz
Operating Temperature - Minimum
-13 Degrees F
Body Finish
Nickel Plated
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Operating Temperature - Maximum
158 Degrees F
Electrical Installation Type
Direct Connector
Load Current - Maximum
200 mA
Sensing Distance - Minimum
3 mm
Includes Indicator Lights
Indicator Lights Included
Number of Pins
4

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 12 to 48V DC, Shielded, Proximity Sensor Operating Frequency 2,500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, IP Rating IP67, IP69K, Case Material Nickel Plated Brass, Length 62 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
