  9. Digital Vacuum Gauge, 3" Dial Size, Red

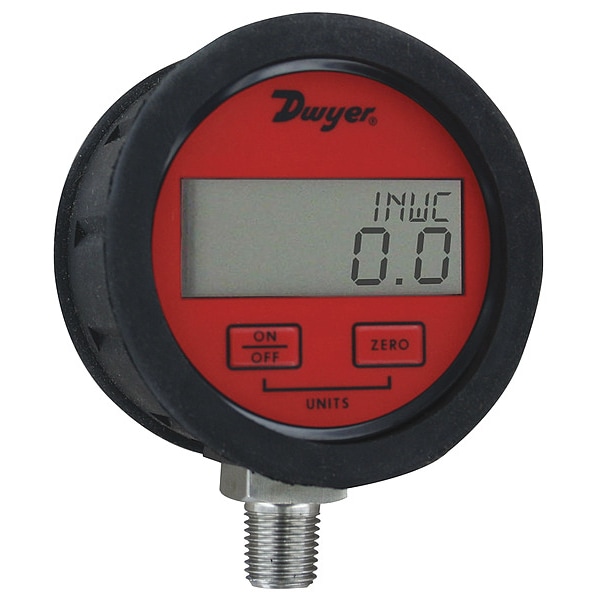

Dwyer Instruments Digital Vacuum Gauge, 3" Dial Size, Red DPGAB-00 - main

Digital Vacuum Gauge, 3" Dial Size, Red

  • Mfr # DPGAB-00

  • Zoro # G5164565

product price: $238.99
/ea
Free Shipping & Returns

Key Features

Gauge Application
For Dry Air & Gases
Gauge Nominal Dial Size
3 in
Gauge Connection Type
MNPT
Gauge Connection Size
1/4 in
Gauge Connection Location
Bottom
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DPGAB-00
Zoro #
G5164565
UPC #
-
Country of Origin
United States

Dimensions

Gauge Nominal Dial Size
3 in
Gauge Connection Size
1/4 in
Manufacturers Warranty Length
1 yr
Nominal Dial Size
3 in
Case Diameter
3.093 in
Process Connection Size
1/4 in
Manufacturer Warranty Length
1 yr
Digit Height
0.43 in
Case Depth
1.781 in
Battery Size
9V

Details

Gauge Application
For Dry Air & Gases
Gauge Connection Type
MNPT
Gauge Connection Location
Bottom
Gauge Primary Range Units
psi
Calibration Certificate
No
Resolution
Dependent on Range
Case Color
Red
Socket Material
Stainless Steel
Digital Gauge Display Units
bar, in Hg, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psi
Digital Gauge Accuracy
+/-0.50% Full Scale
Memory Storage
No
Peak Hold
No
Gauge Operating Temp. Range
30 Degrees to 120 Degrees F
Series
DPGAB
Powered By
9V Battery
Display Units
bar, in Hg, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psi
Gauge Case Material
ABS
Item
Digital Process Vacuum Gauge
Accuracy
+/-0.50%
Includes
Alkaline Batteries
Gauge Primary Range Values
-15 to 0
Display
LCD
Features
Automatic Shutoff, Zero Adjustment
Range
-15 to 0 psi
Case Material
ABS Thermoplastic
Number of Display Digits
4
Includes Rubber Boot
Yes
Power Source
Battery
Sensor Material
Silicone
Case Shape
Round
Compatible Process Media
Air and Compatible Gases
Process Temperature Range
30 Degrees to 120 Degrees F
Panel-Mountable
No
Non-Sparking
No
Languages
English
Application
OEM Applications, Process Industries
Display Screen Type
LCD
Display Range
-1.013 to 0 bar, -1.033 to 0 kg/cm², -101.4 to 0 kpa, -1013 to 0 mbar, -1034 to 0 cm wc., -235.2 to 0 oz/in², -29.93 to 0 in Hg, -33.94 to 0 ft wc., -407.3 to 0 in wc., -761 to 0 mm Hg, 30 to 0 in Hg
Pressure Gauge Type
Process Pressure Gauge
Process Connection Type
NPT
Includes Calibration Certificate
No
Primary Display Units
psi
Battery Type
9V Battery
Temperature Error
0.05% Degrees F
Display Resolution
0.01 psi
Includes Mounting Hardware
No
Process Connection Gender
Male
Auto-Shutoff
Yes
Over-Pressure Limit
105% of Full Scale
Standards
CE Certified, RoHS
IP/NEMA Rating
Not Rated
Primary Display Range
-15 to 0
Auto-Shutoff Time
20 min
Pressure Range Type
Compound
Adjustable Set Points
No
Backlit Screen
No
Hazardous Location Rating
Not Rated
Includes Batteries
Batteries Included
Number of Digits
4
Weatherproof
No
Low Battery Indicator
Yes
Blowout Safety Back
No
Process Connection Location
Bottom
Pressure Measurement - Minimum
-15 psi
Process Media Temperature - Maximum
120 Degrees F
Process Media Temperature - Minimum
30 Degrees F
Pressure Measurement - Maximum
0 psi
Pressure Measuring Units
bar, in Hg, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psi
Includes Low Battery Indicator
Low Battery Indicator

Description

Digital Process Vacuum Gauge, Accuracy +/-0.50 Percent, Gauge Case Material ABS, Nominal Dial Size 3 in, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Compatible Process Media Air and Compatible Gases, Sensor Material Silicone, Socket Material Stainless Steel, Process Connection Type NPT, Display Units bar, in Hg, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psi, Process Connection Gender Male, Battery Type 9V Battery, Process Connection Location Bottom, Process Connection Size 1/4 in
