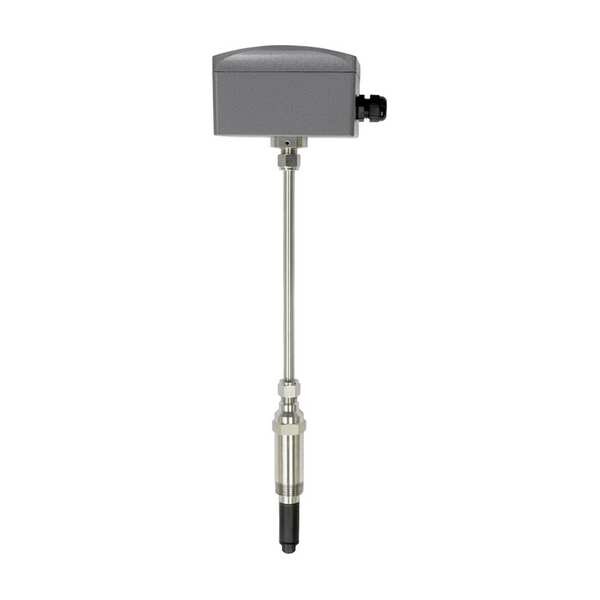

Dwyer Instruments Electronic Flowmeter, Insertion, NPT IEF-SN-CND - main

Electronic Flowmeter, Insertion, NPT

  • Mfr # IEF-SN-CND

  • Zoro # G7728829

product price: $2,515.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Aluminum
Type
Insertion Electromagnetic Flow Transmitter
For Pipe Size
4 to 36 in
Connection Size
1 in
Flow Material
Compatible Clean or Dirty Non Coating, Conductive Liquids
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IEF-SN-CND
Zoro #
G7728829
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
4 to 36 in
Connection Size
1 in
Width (In.)
7 3/32 in
Height (In.)
22 1/64 in
Overall Width
7.1 in
Overall Height
22 in

Details

Item
Flow Transmitter
Housing Material
Aluminum
Type
Insertion Electromagnetic Flow Transmitter
Flow Material
Compatible Clean or Dirty Non Coating, Conductive Liquids
Connection Type
NPT
Max. Pressure
400 psi
Frequency Range (Hz)
0 to 500
Wetted Materials
316 Stainless Steel, Polymer/Polystyrene, Silicon
Fluid Temp. Range
Ambient: -20 Degrees to 160 Degrees F (-29 Degrees to 71 Degrees C), Process: 15 Degrees to 250 Degrees F (-9 Degrees to 121 Degrees C), Storage: -40 Degrees to 185 Degrees F (-40 Degrees to 85 Degrees C)
Output Type
4-20 mA, Standard Frequency Pulse
Standards
BTL, CE, NSF/ANSI 61 and 372.
Accuracy (%)
+/-1
O-Ring
Silicon
Sensor Type
Electromagnetic
Display Type
Digital
Power Requirement
12 to 36V AC, 12 to 42.4V DC, 0.25 A @ 24V DC
Flow Meter Pipe Type
Copper
Mounting Orientation
Vertical
Media Temperature - Maximum
250 Degrees F
Includes Totalizer
Yes
Flowmeter Type
Electromagnetic
Flow Rate - Maximum
252 cu in/sec
Compatible Flow Material
Conductive Liquids
Wetted Material
316 Stainless Steel, Polystyrene, Silicon
Product Type
Insertion Electromagnetic Flow Transmitter
Operating Pressure - Maximum
400 psi
Frequency - Minimum
0 Hz
Voltage - Maximum
35V DC
Accuracy
+/-1%
Media Temperature - Minimum
15 Degrees F
Unit Of Measure
Gallons
Flow Rate - Minimum
12 cu in/sec
Frequency - Maximum
500 Hz
Includes Flow Rate Adjustment Knob
No

Description

Flow Transmitter, Product Type Insertion Electromagnetic Flow Transmitter, Flowmeter Type Electromagnetic, Accuracy +/-1 Percent, Connection Size 1 in, Connection Type NPT, Compatible Flow Material Conductive Liquids, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum 15 Degrees F, Viscosity - Maximum Not Applicable, Voltage - Maximum 35V DC, Housing Material Aluminum, Rotor Material Not Applicable, O-Ring Material Not Applicable, Seal Material Not Applicable

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
