  9. SPST Tank Liquid Level Switch Selectable 240 VAC 100 PSI
Shop All Level Switches
Madison

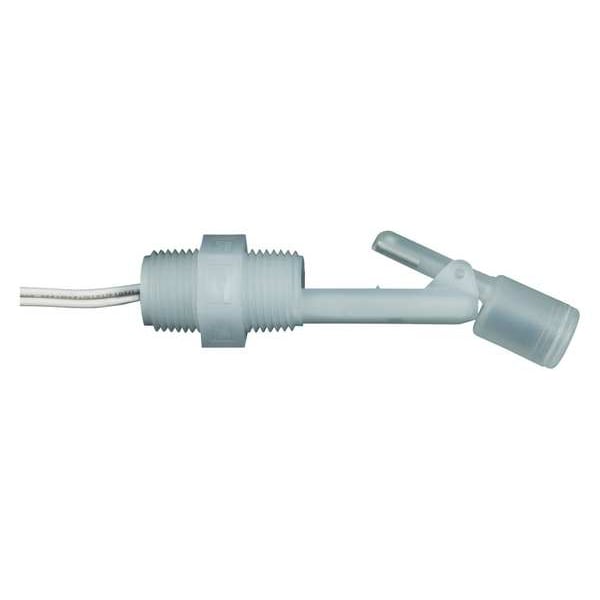

SPST Tank Liquid Level Switch Selectable 240 VAC 100 PSI

product price: $13.25
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 240VAC
  • Max. Pressure 100 psi
  • Float Specific Gravity 0.6
  • Mounting Side
  • Switch Function Selectable
See all product information

Product Information

Dimensions

Float Length 2.11 in
Width 2.75 in
Tank Connection Size 1/2 in x 1/2 in MNPT
Overall Length 4.3 in
Float Dia. 0.65 in
Stem Length 2.75 in
Conduit Size 1/2 in x 1/2 in
Overall Width 2.75 in
Float Diameter 0.65 in
Stem Thread Size 1/2 in x 1/2 in MNPT

Details

Voltage 240VAC
Max. Pressure 100 psi
Float Specific Gravity 0.6
Mounting Side
Switch Function Selectable
Operating Temp. Range 221 Degrees F Max.
Float Switch Contact Form SPST
VA Rating 30
Electrical Connections 22 ga MTW Coated 24 in Leads
Float Material Polypropylene
Body Material Polypropylene
Float Switch Float Material Polypropylene
Stem Material Polypropylene
Item Alternator Closed Liquid Level Switch
Standards CE, CSA, FLORIDA DEP EQ682, NSF, UL Listed
Max. Voltage 240 V
Contact Form SPST
Max. Current 0.28 A
Series M8700
Product Type Alternator Closed Liquid Level Switch
Minimum Media Specific Gravity 0.63
Voltage Rating - Maximum 120 V DC, 240 V AC
Current Rating - Maximum 0.28 A
Operating Temperature - Maximum 221 Degrees F
Proof Pressure 100 psi
Electrical Connection Lead Wires

Description

Alternator Closed Liquid Level Switch, Switch Function Selectable, Side Mounting, Tank Connection Size 1/2 in x 1/2 in MNPT, Max. Pressure 100 psi, VA Rating 30, Operating Temp. Range 221 Degrees F Max., Overall Length 4.3 in, Float Material Polypropylene, Float Length 2.11 in, Float Dia. 0.65 in, Stem Material Polypropylene, Stem Length 2.75 in, Width 2.75 in, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material Polypropylene, Conduit Size 1/2 in x 1/2 in
