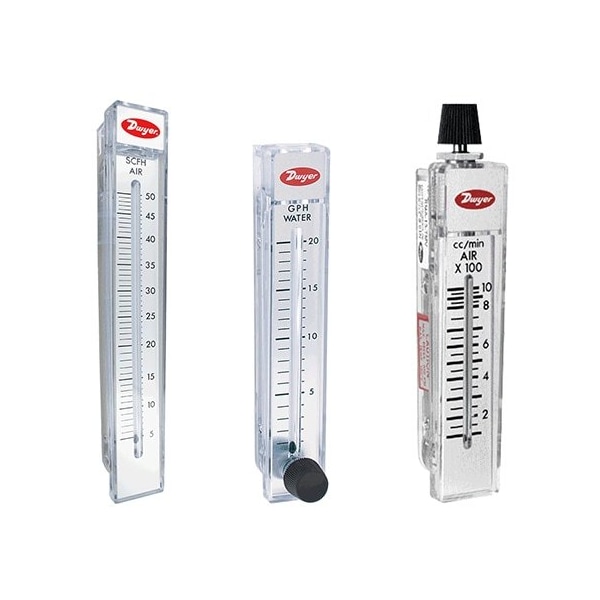

Flowmeter, range 10-100 GPH water.
Mfr # RMB-85
Zoro # G0571271
product price: $76.89
/ea
Free Shipping & Returns
Key Features
Accuracy
3%
Overall Length
3.6 in
Overall Width
1.5 in
Overall Height
8.8 in
Standards
EU Directive 2011/65/EU, RoHS II Compliant
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RMB-85
Zoro #
G0571271
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
3.6 in
Overall Width
1.5 in
Overall Height
8.8 in
Connection Size
1/4 in
For Pipe Size
1/4 in
Details
Item
Flowmeter
Accuracy
3%
Standards
EU Directive 2011/65/EU, RoHS II Compliant
Operating Pressure - Maximum
100 psi
Flow Rate - Maximum
100 gph
Unit Of Measure
Gallons
Mounting Orientation
Vertical
Housing Material
Polycarbonate
O-Ring Material
Buna-N, Neoprene
Flowmeter Type
Variable Area
Compatible Flow Material
Water
Media Temperature - Maximum
130 Degrees F
Flow Rate - Minimum
10 gph
Wetted Material
Aluminum, Buna-N, Glass, K500 Nickel-Copper Alloy, Neoprene, Polycarbonate, Stainless Steel, Tungsten Carbide
Product Type
Variable Area Flowmeter
Connection Type
FNPT
Includes Flow Rate Adjustment Knob
Yes
Description
Flowmeter, Product Type Variable Area Flowmeter, Flowmeter Type Variable Area, Accuracy 3 Percent, Connection Size 1/4 in, Connection Type FNPT, Compatible Flow Material Water, Media Temperature - Maximum 130 Degrees F, Media Temperature - Minimum Not Applicable, Viscosity - Maximum Not Applicable, Voltage - Maximum Not Applicable, Housing Material Polycarbonate, Rotor Material Not Applicable, O-Ring Material Buna-N, Neoprene, Seal Material Not Applicable, Shaft Material Not Applicable
Restrictions
This is a restricted item in the USA. It cannot be used for potable water applications.
