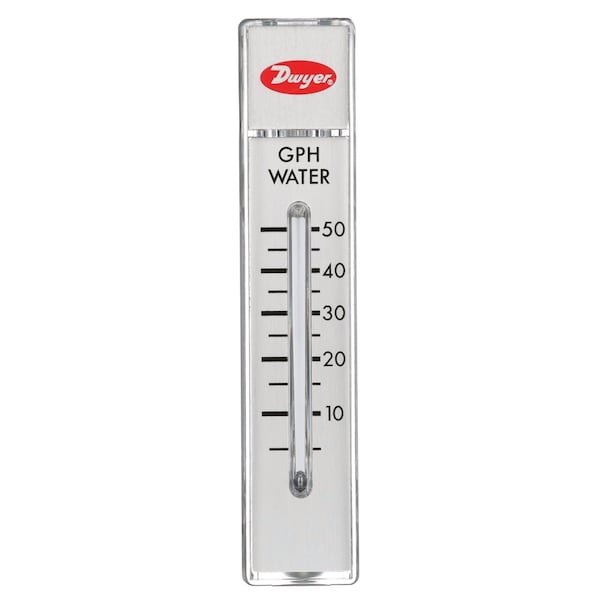

Flowmeter, range 5-50 GPH water.
Mfr # RMA-45-SSV
Zoro # G0632689
product price: $83.89
/ea
Free Shipping & Returns
Key Features
Housing Material
Polycarbonate
For Pipe Size
1/8 in
Connection Size
1/8 in
Connection Type
FNPT
Standards
EU Directive 2011/65/EU, RoHS II Compliant
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RMA-45-SSV
Zoro #
G0632689
UPC #
-
Country of Origin
United States
Dimensions
For Pipe Size
1/8 in
Connection Size
1/8 in
Overall Width
1 in
Overall Length
2.6 in
Overall Height
4.8 in
Details
Item
Flowmeter
Housing Material
Polycarbonate
Connection Type
FNPT
Standards
EU Directive 2011/65/EU, RoHS II Compliant
Product Type
Variable Area Flowmeter
Flow Rate - Minimum
5 gph
Media Temperature - Maximum
130 Degrees F
Unit Of Measure
Gallons
Flowmeter Type
Variable Area
Flow Rate - Maximum
50 gph
Includes Flow Rate Adjustment Knob
Yes
Mounting Orientation
Vertical
Wetted Material
Aluminum, Buna-N, Glass, K500 Nickel-Copper Alloy, Neoprene, Polycarbonate, Stainless Steel, Tungsten Carbide
Compatible Flow Material
Water
Accuracy
4%
O-Ring Material
Buna-N, Neoprene
Operating Pressure - Maximum
100 psi
Description
Flowmeter, Product Type Variable Area Flowmeter, Flowmeter Type Variable Area, Accuracy 4 Percent, Connection Size 1/8 in, Connection Type FNPT, Compatible Flow Material Water, Media Temperature - Maximum 130 Degrees F, Media Temperature - Minimum Not Applicable, Viscosity - Maximum Not Applicable, Voltage - Maximum Not Applicable, Housing Material Polycarbonate, Rotor Material Not Applicable, O-Ring Material Buna-N, Neoprene, Seal Material Not Applicable, Shaft Material Not Applicable
