Shop All Manometers
Dwyer Instruments

Gas Pressure Kit

product price: $188.99
/ea
Free Shipping & Returns
Delivery to commercial address only
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Operating Range (In WC) 8-0-8
  • Pressure Range -8 to 8 in wc
  • Slack Tube Length (In.) 16 in
  • Max. Working Temp. (Deg. F) 130
  • Mounting Magnetic Clip
See all product information

Product Information

Dimensions

Slack Tube Length (In.) 16 in
Slack Tube Length 16 in
For Tubing Diameter 0.187 in

Details

Item Analog Manometer
Operating Range (In WC) 8-0-8
Pressure Range -8 to 8 in wc
Max. Working Temp. (Deg. F) 130
Mounting Magnetic Clip
Rated Total Pressure 50 psi

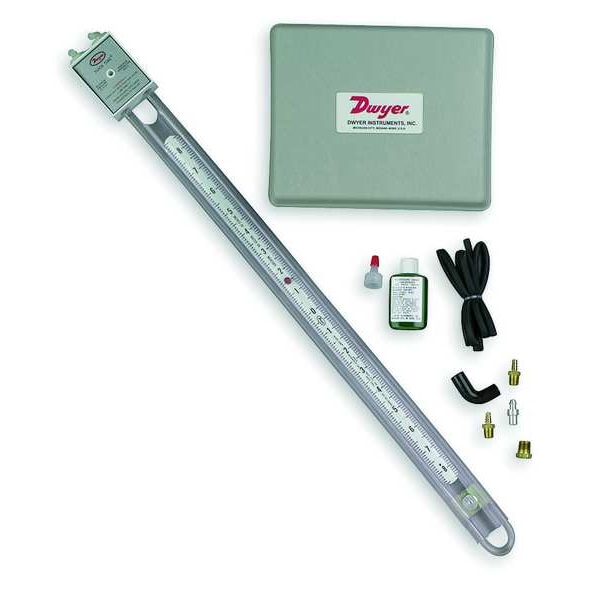

Includes 1 oz Bottle Fluorescein Green Color Concentrate with Wetting Agent, 1/8 to 1/4 in Pipe Thread Bushing, 16 in Manometer No.3T302, 3 ft By 3/16 in Rubber Tubing, Plastic Case, Rubber Tubing Adapter to fit 7/16 in dia Spud, (2) 1/8 in Pipe Thread Rubber Tubing Adapters
Max. Vacuum (In. Hg) 20 in
Operating Range 8-0-8 in wc
Lens Material Nylon, Plastic
Fluid Color Green
Includes Stand No
Scale Units in wc
Maximum Operating Temperature 130 Degrees F
Series 1212
Maximum Pressure 8 in wc
Housing Material Vinyl-Plastic
Manometer Type Flexible U-Tube
Minimum Pressure -8 in wc
Mounting Fasteners Included Yes
Maximum Operating Pressure 50 psi
Standards RoHs
Includes Gas Pressure Kit Yes

Description

Analog Manometer, Pressure Range -8 to 8 in wc, For Tubing Diameter 0.187 in, Maximum Operating Pressure 50 psi, Maximum Pressure 8 in wc, Minimum Pressure -8 in wc, Scale Units in wc, Series 1212, Manometer Type Flexible U-Tube, Housing Material Vinyl-Plastic, Includes Gas Pressure Kit Yes, Fluid Color Green

Restrictions

  • Hazardous material
