  5. Lead-Free Pressure Gauge, 0 to 200 psi, 2 in Dial, 1/4 in NPT, Center Back Location

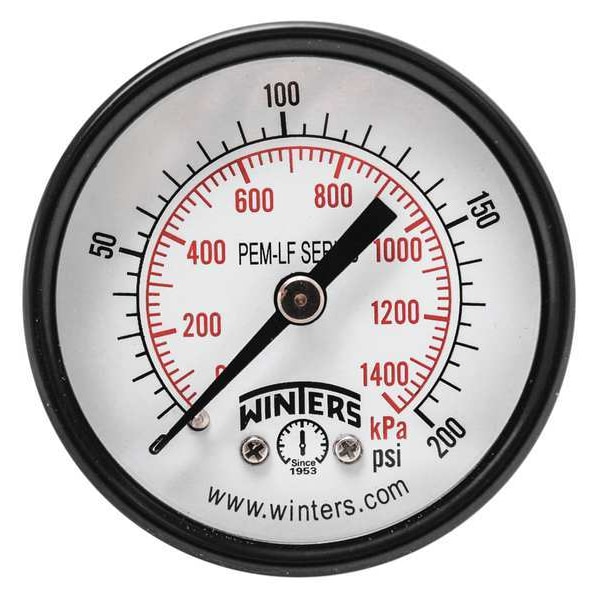

Winters Lead-Free Pressure Gauge, 0 to 200 psi, 2 in Dial, 1/4 in NPT, Center Back Location PEM1410LF - main

Lead-Free Pressure Gauge, 0 to 200 psi, 2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # PEM1410LF

  • Zoro # G9756826

product price:  $9.79
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PEM1410LF
Zoro #
G9756826
UPC #
628311202380
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Length
1.850"
Nominal Dial Size
2 in
Case Diameter
2.07 in
Manufacturer Warranty Length
5 yr
Case Depth
1.079 in
Nominal Dial Diameter
2 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Gauge Case Material
Steel
Series
PEM-LF
Lens Material
Plastic
Primary Pressure Range
0 to 200
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Color
Black
Calibration Certificate Included
No
Required Gauge Adapter
No
Gauge Application
General Purpose Gauge for Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tanks, Air Compressors, OEM
Characteristics
Friction Bezel Ring
For Use With
Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
Case Material
Steel
Socket Material
Lead Free Brass
NSF Certified
Yes
Standards
ANSI/ASME, CRN, NSF
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Scale Type
Dual
Non-Sparking
No
Sensor Type
Bourdon Tube
Secondary Pressure Range
0 to 1,400
Accuracy Grade
Grade B
Pointer Color
Black
Case Construction
Welded Joint
Accuracy Scale
Mid-Scale
Field Fillable
No
Secondary Scale Units
kPa
Pointer Material
Aluminum
Bezel Material
Steel
Dial Color
White
Includes Vent Plug
No
Sensor Material
Phosphor Bronze
Process Connection Gender
Male
Removable Bezel
No
Compatible Process Media
Non-Clogging, Non-Corroding, Potable Water
Over-Pressure Limit
25% of Full Scale
Dry Dampening Feature
None
Case Finish
Painted
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Gauge Case Liquid
None
Includes Calibration Certificate
No
Dial Face Material
Aluminum
Vibration Resistance
None
Movement Material
Stainless Steel
Includes Mounting Hardware
No
Freeze Resistant Movement
No
Cleaned for Oxygen Service
No
Pressure Gauge Type
Lead-Free Pressure Gauge
Pressure Range Type
Pressure
Process Temperature Range
-40 Degrees to 150 Degrees F
Maximum Pressure
200
Operating Temperature Range
-40 Degrees to 150 Degrees F
Primary Scale Pressure Measurement - Maximum
200 psi
IP Rating
IP52
Operating Temperature - Minimum
-40 Degrees F
Process Media Temperature - Maximum
150 Degrees F
Case Liquid
None
Operating Temperature - Maximum
150 Degrees F
Compatible with Brand
Universal
Secondary Scale Pressure Measurement - Minimum
0 kPa
Secondary Scale Pressure Measurement - Maximum
1,400 kPa
Process Media Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
NEMA Enclosure Rating
5

Description

Lead-Free Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 200, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Lead-Free Pressure Gauge, Liquid-Filled Case No
