  9. Handheld Manometer Kit.0 to 20.00 In WC

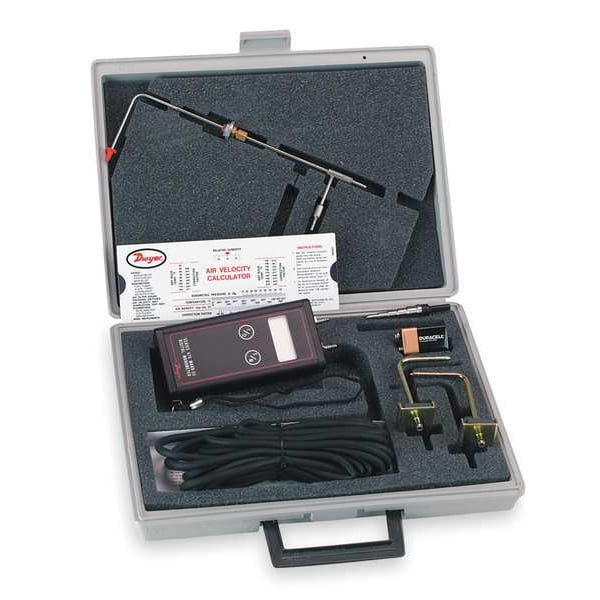

Dwyer Instruments Handheld Manometer Kit.0 to 20.00 In WC 475-1-FM-AV - main

Handheld Manometer Kit.0 to 20.00 In WC

  • Mfr # 475-1-FM-AV

  • Zoro # G3202927

product price: $765.99
/ea
Free Shipping & Returns

Key Features

Includes
(2) 9 Ft Lengths 3/16 in ID Rubber Tubing, (2) A-303 Static Pressure Tips With Magnetic Mounting, A-397 Step Drill for 3/16 in-1/2 in Holes in 1/16 in Increments, A-532 AV Slide Chart, Fitted Polyethylene Case, Model 166-6-CF, 6 in SS Pitot Tube With Integral Compression Fitting
Accuracy
+/-0.5%
Pressure Accuracy
+/-0.5% of Full Scale
Battery Type
9V
Pressure Resolution
0.01 in wc
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
475-1-FM-AV
Zoro #
G3202927
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr
Housing Length
2.812 in
Overall Length
0.906 in
Overall Height
6.5 in
Overall Width
2.812 in
Process Connection Size
1/8 in, 3/16 in
Housing Height
5.875 in
Battery Size
9V

Details

Item
Air Manometer Kit
Includes
(2) 9 Ft Lengths 3/16 in ID Rubber Tubing, (2) A-303 Static Pressure Tips With Magnetic Mounting, A-397 Step Drill for 3/16 in-1/2 in Holes in 1/16 in Increments, A-532 AV Slide Chart, Fitted Polyethylene Case, Model 166-6-CF, 6 in SS Pitot Tube With Integral Compression Fitting
Accuracy
+/-0.5%
Pressure Accuracy
+/-0.5% of Full Scale
Battery Type
9V
Pressure Resolution
0.01 in wc
Operating Range
0 to 5 kPa
For Use With
Air, Non-Corrosive Dry Gases
Operating Temp. Range
0 Degrees to 140 Degrees F
Max. Pressure
10 psi (0.6895 bar)
Standards and Approvals
Intrinsically Safe, Class I, Div 1, Group A, B, C, D, T4
Pressure Range
0 in wc to 20 in wc
Display
3 1/2 Digit LCD
Connection Type
Fits 1/8 or 3/16 in ID Tubing
Resolution
0.01 in wc
Calibration Certificate Included
No
Pressure Units
in wc
Operating Pressure Range
0 to 20 in wc
Batteries Required
Yes
Maximum Operating Pressure
10 psi
Digital Display Features
4 Digit LED
Display Units
in wc
Low Battery Indicator
Yes
Air Velocity Accuracy
+/-0.50% Full Scale from 60 to 78 Degrees F(15.6 to 25.6 Degrees C), +/-1.50% Full Scale from 32 to 60 Degrees F and 78 to 104 Degrees F(0 to 15.6 Degrees C and 25.6 to 40 Degrees C)
Weight
10.8 oz
Minimum Operating Temperature
0 Degrees F
Minimum Pressure
0 in wc
Maximum Operating Temperature
140 Degrees F
Storage Temperature Range
-4 Degrees to 176 Degrees F
Includes Batteries
Batteries Included
Housing Material
Aluminum
Manometer Type
Intrinsically Safe Air Velocity Kit
Application
Natural Gas; Air
Maximum Pressure
20 in wc
Process Connection Type
Hose Barb
Compatible with Product Type
Boilers, HVAC Systems
Auto Power Off
Yes
Safety Rating
Class I Div. 2 Group A, B, C, D
Series
475
Includes Low Battery Indicator
Low Battery Indicator
Digital Display Type
LED
Operating Temperature - Minimum
0 Degrees F
Pressure Measurement - Minimum
0 in wc
Number of Digits
4
Operating Temperature - Maximum
140 Degrees F
Pressure Measurement - Maximum
20 in wc
Intrinsic Safety
Not Specified Intrinsically Safe

Description

Air Manometer Kit, Maximum Pressure 20 in wc, Minimum Pressure 0 in wc, Pressure Accuracy +/-0.5 Percent of Full Scale, Process Connection Size 1/8 in, 3/16 in, Process Connection Type Hose Barb, Includes Batteries Batteries Included, Digital Display Features 4 Digit LED, Series 475, Pressure Units in wc
