  5. Immersion Probe, 10K Ohm Type 2, 12 In L

This item is Discontinued.

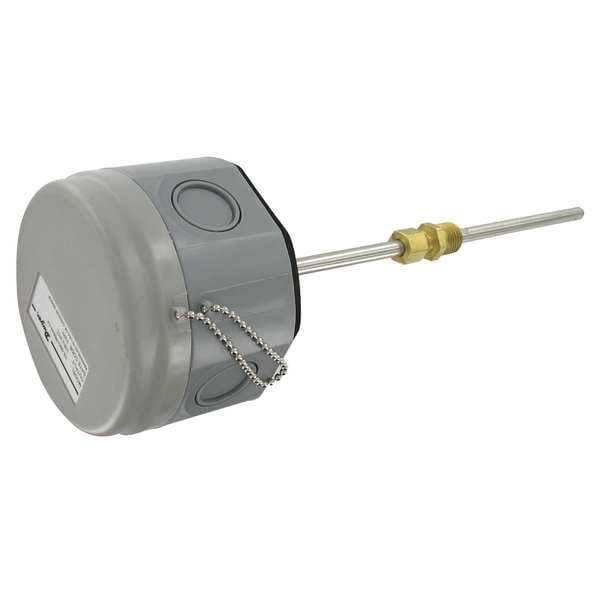

Dwyer Instruments Immersion Probe, 10K Ohm Type 2, 12 In L TE-IBG-B1244-14

Immersion Probe, 10K Ohm Type 2, 12 In L (Discontinued)

  • Mfr # TE-IBG-B1244-14
  • Zoro # G5784046
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TE-IBG-B1244-14
Zoro #
G5784046
UPC #
-
Country of Origin
China

Dimensions

Probe Wire Length
4 in
Probe Length
12 in
Wire Length
4"
Probe Dia.
1/4 in
Manufacturers Warranty Length
1 yr
Probe Diameter
0.25 in
Probe Size
1/4 in x 12 in
Cable Length
4 ft
Manufacturer Warranty Length
1 yr

Details

Item
Immersion Temperature Probe
Primary Measuring Element
Thermistor
Probe Temp. Measuring Element
10K Ohm Thermistor
Temp. Range (F)
-40 Degrees to 302 Degrees
Probe Contact Material
304 Stainless Steel
Probe Connection Type
Custom
Includes
Housing
Use
Air or Liquids
Accuracy
+/-0.28 Degrees F at 32 Degrees F/ +/-0.15 Degrees C at 0 Degrees C, +/-0.4 Degrees F at 77 Degrees F/ +/-0.22 Degrees C at 25 Degrees C
Process Connection
1/4 in NPT, Compression Fitting
Probe Connector
Custom
Probe Material
304 Stainless Steel
Temp. Range (C)
-40 Degrees to 150 Degrees
Temperature Measuring Element
10K Ohm Type 2 Thermistor
Process Mounting
1/2 in NPT, 1/4 in NPT Compression Fitting
Maximum Temperature F
302 Degrees F
Maximum Temperature C
150 Degrees C
Temperature Range
-40 Degrees to 302 Degrees F/-40 Degrees to 150 Degrees C
For Liquids and Gels
Yes
Fitting Type
Compression
Thermistor Type
2-Wire
Head Material
304 Stainless Steel
For Solids
No
Resistance
10,000 ohm
For Air
Yes
For Surfaces
No
Minimum Temperature F
-40 Degrees F
Sensor Type
Thermistor
Includes Signal Converter
No
Probe Sheath Material
304 Stainless Steel
Probe Bend
Straight
Minimum Temperature C
-40 Degrees C
For Gases
Yes
For Application
AHU Monitoring, Building Automation, Chiller or Boiler Loops, VAV Temperature Sensing
Head Connection
0.875 Conduit Knock Out
Connector Type
Custom
Maximum Temperature °F
302 Degrees F
Maximum Temperature °C
150 Degrees C
Minimum Temperature °F
-40 Degrees F
Minimum Temperature °C
-40 Degrees C

Description

Immersion Temperature Probe, Resistance 10,000 ohm, For Application AHU Monitoring, Building Automation, Chiller or Boiler Loops, VAV Temperature Sensing, 1/2 in NPT, 1/4 in NPT Compression Fitting, Custom, Immersion, Cable Length 4 ft, Sensor Type Thermistor, -40 Degrees to 302 Degrees F/-40 Degrees to 150 Degrees C
