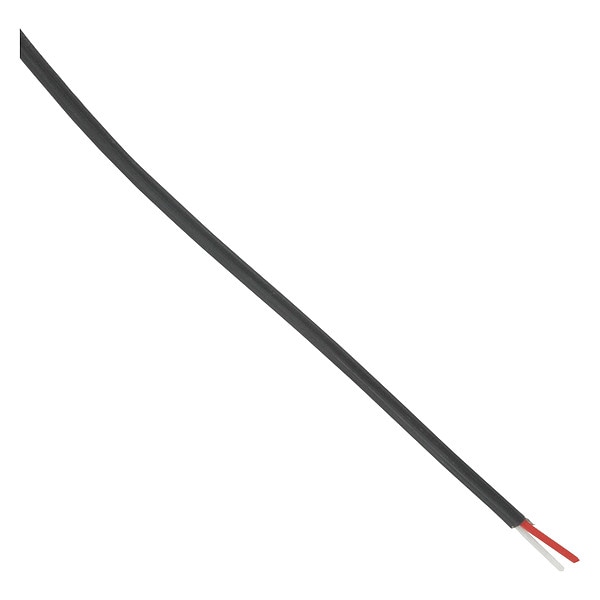

J type, 100 ft on spool, FEP insulation, 200 Degree C, black outer sheath, 24 AWG, 0.20 SQMM
Mfr # A-TC-J100-FEP
Zoro # G4516489
product price:Â $75.55
/eaKey Features
Wire Type
Type J
Wire Length
100 ft
Conductor Design
Stranded
Insulation Material
FEP
Jacket Color
Black
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- A-TC-J100-FEP
- Zoro #
- G4516489
- UPC #
- -
- Country of Origin
- India
Dimensions
- Wire Length
- 100 ft
- Wire Size
- 24 AWG
- Length
- 100 ft
- Length (Straight Wireway)
- 100 ft
- Conductor Size
- 24 AWG
- Overall Length
- 100 ft
- Wire Rope Length
- 100 ft
Details
- Item
- Thermocouple Wire
- Wire Type
- Type J
- Conductor Design
- Stranded
- Insulation Material
- FEP
- Jacket Color
- Black
- Number of Conductors
- 2
- Trade Designation
- J
- Features
- NEMA 4X (IP65) Front Panel Resists Dust & Moisture; Four Password Protected Security Levels; Front Panel Programmability; 16 Segments of Ramp/Soak with Program End Control; Operates on 100-240 VAC, 132-240 VDC
- Display
- Two 4-digit, 7 segment, 0.56" (14.2 mm) high LED.
- Operating Temperature
- 14 to 131°F (-10 to 55°C).
- Accuracy
- ±0.25% of span, ±1 least significant digit.
- Front Panel Rating
- NEMA 4X (IP66).
- Control Output Ratings
- Relay: SPDT, 10 A @ 240 VAC resistive, 1/2 hp @ 120 VAC, 1/3 hp @ 240 VAC; Alarm Relay: SPST, 3 A @ 240 VAC resistive; Proportional Current: 0-20 mA DC, scalable into 600 ohms maximum.
- Temperature Rating - Maximum Dry
- 392 Degrees F
- Conductor Insulation Color
- Black
- Thermocouple Type
- Type J
- Conductor Insulation Material
- FEP
Description
Thermocouple Wire, Wire Type Type J, Wire Size 24 AWG, Wire Length 100 ft, Stranded, Jacket Color Black, Number of Conductors 2, Insulation Material FEP
