Shop DWYER INSTRUMENTS

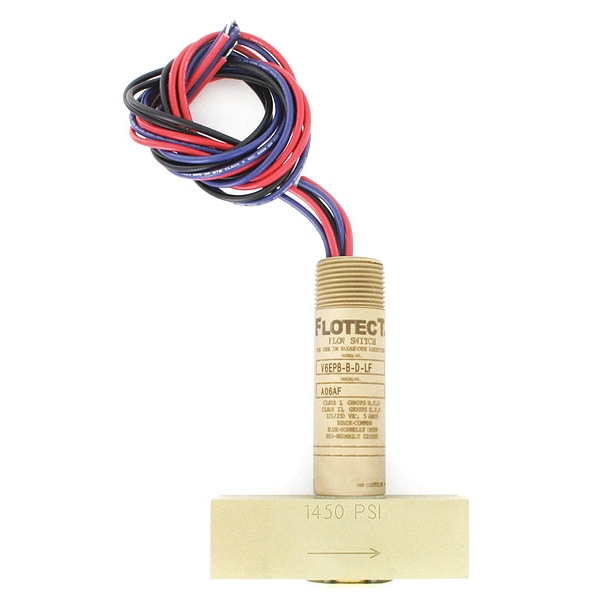

Liquid Flow Switch, DPDT, 125/250VAC

  • Mfr # V6EPB-B-D-LF

  • Zoro # G0507282

product price:  $558.99
/ea
Free Shipping & Returns

Key Features

Type
Piston
Housing Material
Brass
For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1/2 in
Connection Type
NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V6EPB-B-D-LF
Zoro #
G0507282
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1/2 in
Connection Size (In.)
1/2 FNPT
Max. Duct Size (In.)
1/2 in
Overall Width
3.6 in
Overall Length
3.6 in
Overall Height
4.8 in
Wire Rope Length
3.6 in

Details

Item
Liquid Flow Switch
Type
Piston
Housing Material
Brass
Connection Type
NPT
Voltage
125/250V AC
Wetted Materials
301 Stainless Steel, 302 Stainless Steel, 304 Stainless Steel, Brass, Buna-N, Ceramic
Switch Type
DPDT
Standards
ATEX, CE Certified, CSA Certified, IECEx, KTL, UL Listed
Flow Rate
1.5 gpm
Max. Ambient Temp. (F)
167 Degrees F
Max. Pressure (PSI)
1,000 psi
Application
Coolant Loops, Other
Compliance
CSA, UL
Min. Ambient Temp. (F)
-4 Degrees
Max. Fluid Temp. (F)
220 Degrees F
Material of Construction
Brass
Hz
50/60
Phase
Single
Contact Rating
5A at 125/250V AC
Min. Fluid Temp. (F)
-4 Degrees F
For Use With
Liquids or Gases
Body Material
Brass
Set Point Configuration
Adjustable
Ambient Temperature - Minimum
-4 Degrees F
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G
Flow Switch Type
Paddle
Switch Position
Normally Closed, Normally Open
Media Temperature - Minimum
-4 Degrees F
Frequency
50 Hz, 60 Hz
Contact Rating (DC)
4 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models)
Media Temperature - Maximum
220 Degrees F
Wetted Material
303 Stainless Steel, Brass, Buna-N, Ceramic
Contact Rating (AC)
5 A @ 125/250V
Switch Enclosure
NEMA 4
Ambient Temperature - Maximum
167 Degrees F

Description

Liquid Flow Switch, Ambient Temperature - Maximum 167 Degrees F, Ambient Temperature - Minimum -4 Degrees F, Connection Size 1/2 in, Connection Type NPT, Contact Rating (AC) 5 A @ 125/250V, Contact Rating (DC) 4 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models), Filter Rating - Maximum Not Applicable, Flow Rate - Maximum Not Applicable, Flow Rate - Minimum Not Applicable, Flow Switch Type Paddle, For Pipe Size 1/2 in, 1/4 in, 2 in, 3/8 in
