Shop FLOMEC

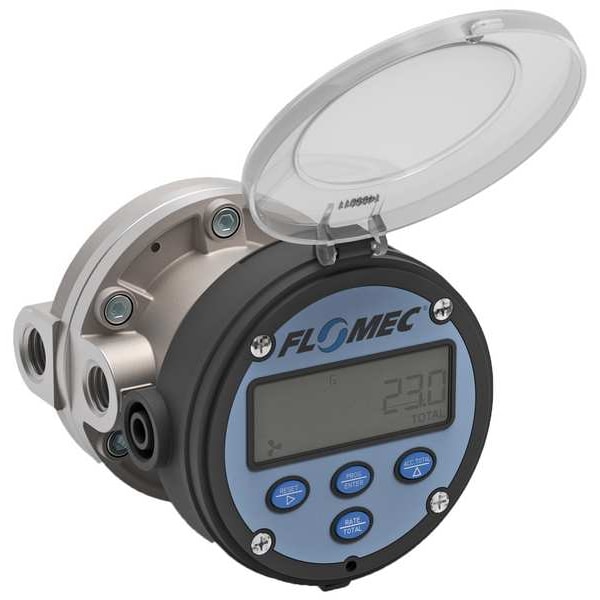

Electronic Flowmeter, 1/2", FNPT, 4.3" L

  • Mfr # OM015S513-822R5G

  • Zoro # G200690084

product price:
$
2,511.99
/ea
Free Shipping & Returns

Key Features

Type
Oval Gear
Housing Material
Stainless Steel
For Pipe Size
1/2 in
Flow Material
High Viscosity, Lubricants, Oil, Thick Fluids, Water, Water-Based
Connection Size
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
OM015S513-822R5G
Zoro #
G200690084
UPC #
-
Country of Origin
Australia
Item
Electronic Flowmeter
Type
Oval Gear
Housing Material
Stainless Steel
Flow Material
High Viscosity, Lubricants, Oil, Thick Fluids, Water, Water-Based
Connection Type
FNPT
Max. Pressure
990 psi
Frequency Range (Hz)
2.8 to 112
Max. Viscosity
1,000 cps
Wetted Materials
316 Stainless Steel, Ceramic, PPS, PTFE Encapsulated FKM
Flow Range
0.26 to 10.6 gpm
Fluid Temp. Range
-22 Degrees to 176 Degrees F
Power Requirement
8 to 24 V DC
Sensor Type
Oval Gear
Display Type
Digital
Shaft Material
Stainless Steel
Display Units
gal
Accuracy (%)
+/- 0.5
Output Type
4-20 mA
Flow Range (LPM)
1 to 40
Flow Range @ GPH
15.6 to 636
Standards
CE Certified
Flow Range (GPM)
0.26 to 10.6
Rotor Type
Stainless Steel Oval Gears
O-Ring
PTFE Encasulated FKM
Seal Material
PTFE
Flow Rate - Minimum
0.26 gpm
Frequency - Minimum
2 4/5 Hz
Operating Pressure - Maximum
990 psi
Voltage - Maximum
30V DC
Includes Totalizer
Yes
Rotor Material
Stainless Steel
Accuracy
+/-0.5%
Frequency - Maximum
112 Hz
Product Type
Oval Gear Flow Meter
Unit Of Measure
Gallons
Viscosity - Maximum
1,000 cps
Compatible Flow Material
Fuel Oils, Fuels, Grease, Lubricants, Oils
Media Temperature - Maximum
140 Degrees F
Wetted Material
316 Stainless Steel, Ceramic, Viton, PPS, PTFE
Media Temperature - Minimum
14 Degrees F
Flow Rate - Maximum
10.6 gpm

Description

Electronic Flowmeter, Product Type Oval Gear Flow Meter, Accuracy +/-0.5 Percent, Connection Size 1/2 in, Connection Type FNPT, Compatible Flow Material Fuel Oils, Fuels, Grease, Lubricants, Oils, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum 14 Degrees F, Viscosity - Maximum 1,000 cps, Voltage - Maximum 30V DC, Housing Material Stainless Steel, Rotor Material Stainless Steel, Seal Material PTFE, Shaft Material Stainless Steel
