Shop DWYER INSTRUMENTS

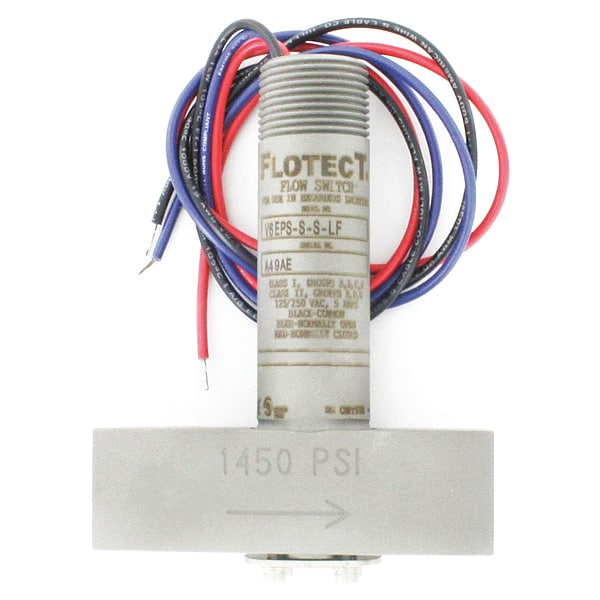

Liquid Flow Switch, SPDT, 125/250VAC

  • Mfr # V6EPS-S-S-LF

  • Zoro # G0506126

product price:  $614.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Stainless Steel
Type
Piston
For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1/2 in
Connection Type
NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V6EPS-S-S-LF
Zoro #
G0506126
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1/2 in
Max. Duct Size (In.)
1/2 in
Connection Size (In.)
1/2 FNPT
Overall Width
3.6 in
Overall Length
3.6 in
Overall Height
4.8 in
Wire Rope Length
3.6 in

Details

Item
Liquid Flow Switch
Housing Material
Stainless Steel
Type
Piston
Connection Type
NPT
Voltage
125/250V AC
Wetted Materials
301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Buna-N, Ceramic
Compliance
CSA, UL
Hz
50/60
Flow Rate
1.5 gpm
Max. Fluid Temp. (F)
220 Degrees F
Body Material
Stainless Steel
Max. Pressure (PSI)
1,000 psi
For Use With
Liquids or Gases
Switch Type
SPDT
Max. Ambient Temp. (F)
167 Degrees F
Contact Rating
5A at 125/250V AC
Standards
ATEX, CE Certified, CSA Certified, IECEx, KTL, UL Listed
Material of Construction
Stainless Steel
Min. Fluid Temp. (F)
-4 Degrees F
Min. Ambient Temp. (F)
-4 Degrees
Application
Coolant Loops, Other
Phase
Single
Frequency
50 Hz, 60 Hz
Contact Rating (AC)
5 A @ 125/250V
Contact Rating (DC)
39 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models)
Wetted Material
303 Stainless Steel, Brass, Buna-N, Ceramic
Flow Switch Type
Paddle
Switch Position
Normally Closed, Normally Open
Media Temperature - Minimum
-4 Degrees F
Switch Enclosure
NEMA 4
Set Point Configuration
Adjustable
Media Temperature - Maximum
220 Degrees F
Ambient Temperature - Minimum
-4 Degrees F
Ambient Temperature - Maximum
167 Degrees F
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G

Description

Liquid Flow Switch, Ambient Temperature - Maximum 167 Degrees F, Ambient Temperature - Minimum -4 Degrees F, Connection Size 1/2 in, Connection Type NPT, Contact Rating (AC) 5 A @ 125/250V, Contact Rating (DC) 39 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models), Filter Rating - Maximum Not Applicable, Flow Rate - Maximum Not Applicable, Flow Rate - Minimum Not Applicable, Flow Switch Type Paddle, For Pipe Size 1/2 in, 1/4 in, 2 in, 3/8 in
